This machine is specifically engineered for the processing of intricate 3D patterns on a variety of materials, including wood, MDF, and acrylic. Its advanced capabilities allow for the creation of detailed designs that meet the demands of complex projects. Additionally, the ATC HSD spindle enhances the efficiency of the operation by facilitating automatic processing, making it an excellent choice for users looking to streamline their workflow while maintaining high precision and quality in their finished products.
4 Axis CNC Router With Rotary Device for Queen Leg Statue Carving
- Model:ET-R1530-4A
- Brand: EXTRACNC
- Price: $10000.00 to $30000.00 / Set based on the configuration
- Payment Terms: Bank Transfer (T/T), Trade Assurance
- Warranty: 1 Year Limited Warranty for Entire Machine
- Supply Ability: 30 Sets / Month
- Support: Customized as Customer Rquest

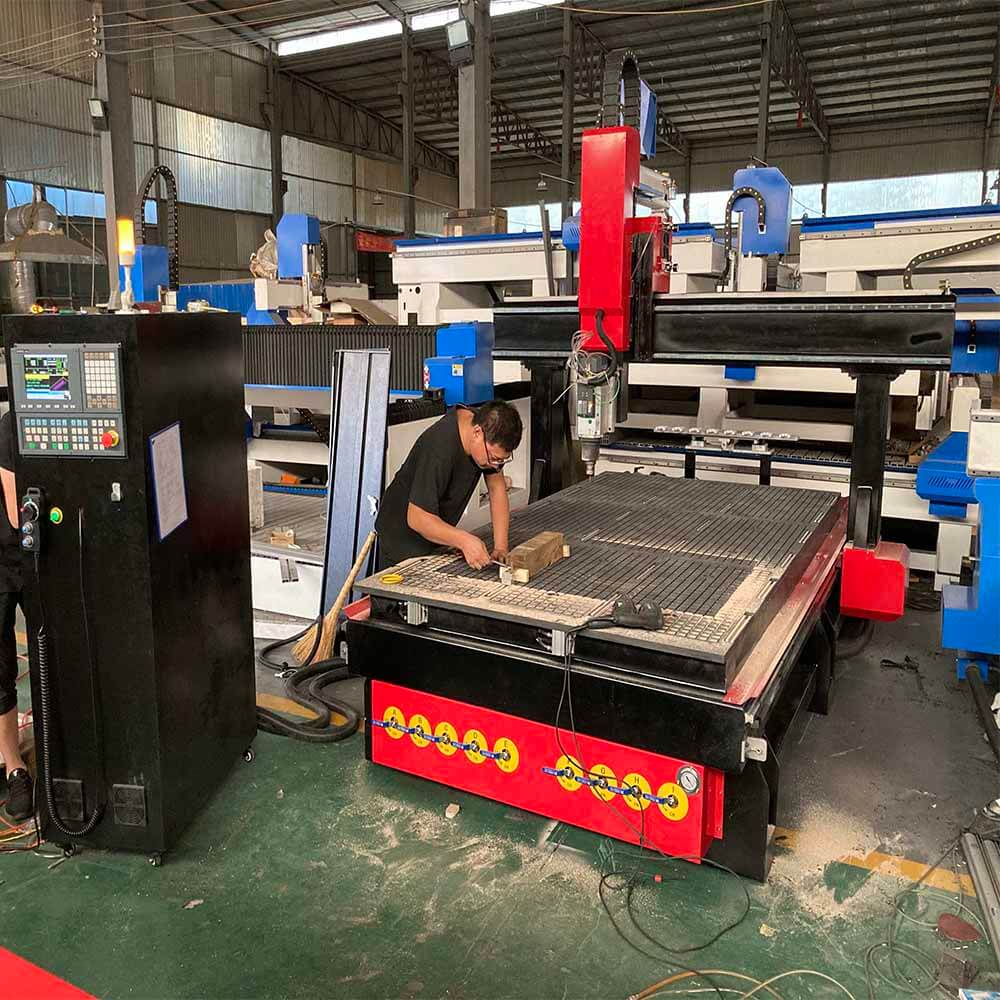

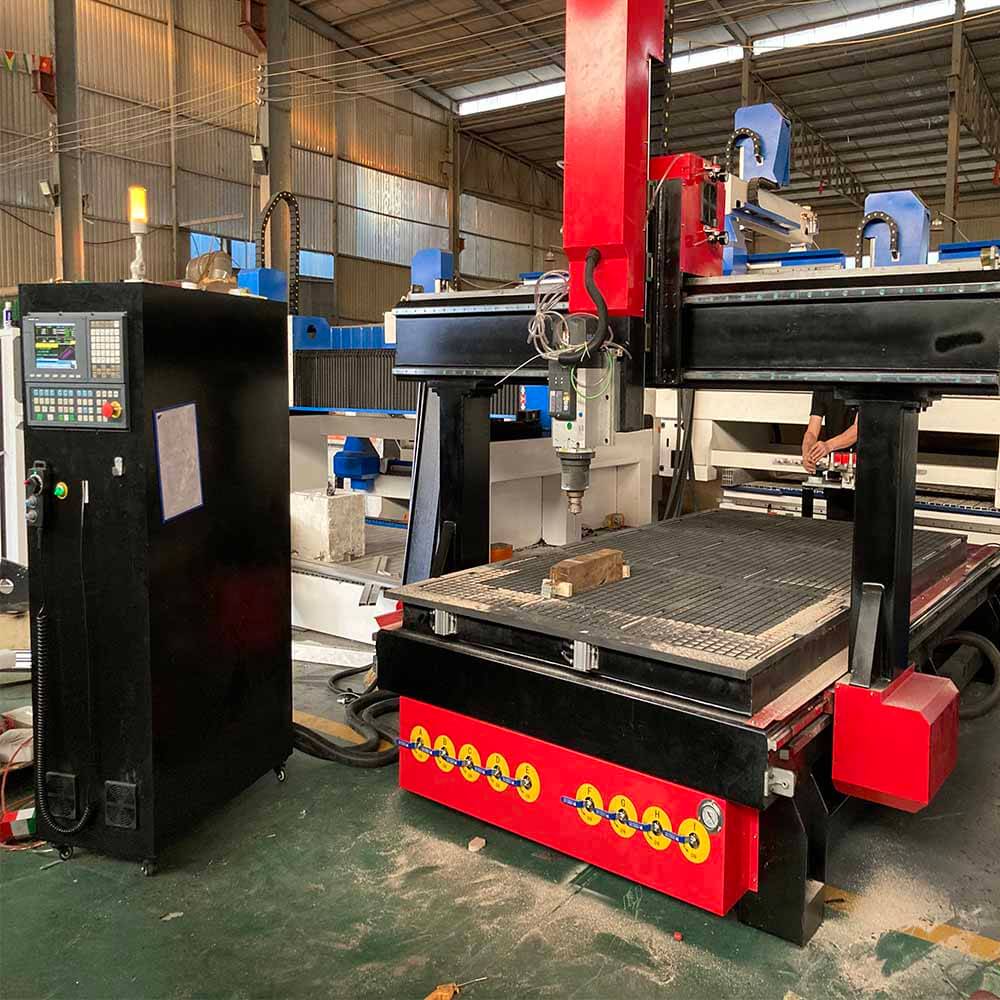

The ET-1530ATC-4A 4th Axis CNC Router features a Z-axis height of 600mm, offering a working height of 400-500mm. It’s perfect for foam milling, plastic machining, wood engraving, and aluminum mold fabrication. With its 3D carving and cutting capabilities, this robust machine is ideal for custom projects and efficient production, making it a valuable addition to any workshop.
Description of 4 Axis CNC Router With Rotary Device for Queen Leg Statue Carving
The ET-1530ATC-4A is a high-speed CNC wood carving router machine that has gained significant popularity. This versatile 4-axis CNC router can perform various tasks, including 3D cutting, engraving, carving, and milling. Its spindle features a unique capability to swing from 0 to 180 degrees, allowing for enhanced precision. Additionally, the machine can be equipped for saw cutting. We have conducted tests for foam and wood cutting based on our client’s requirements, demonstrating its effectiveness across different materials.
Features of 4 Axis CNC Router With Rotary Device for Queen Leg Statue Carving
1. The ET-1530ATC-4A Foam CNC Carving Machine features a Z-axis with a working height of 600mm. Its robust welded structure, crafted from thick profiled steel and stabilized under high temperatures, guarantees minimal distortion, exceptional rigidity, and powerful strength.
2. The JNM1325L Foam CNC Carving Machine is equipped with a Japanese YASKAWA servo motor, ensuring stable operation with low noise, high speed, and impressive accuracy.
3. The China HQD 9kw Air-Cooled ATC CNC machine delivers high precision, a long lifespan, and consistent movement.

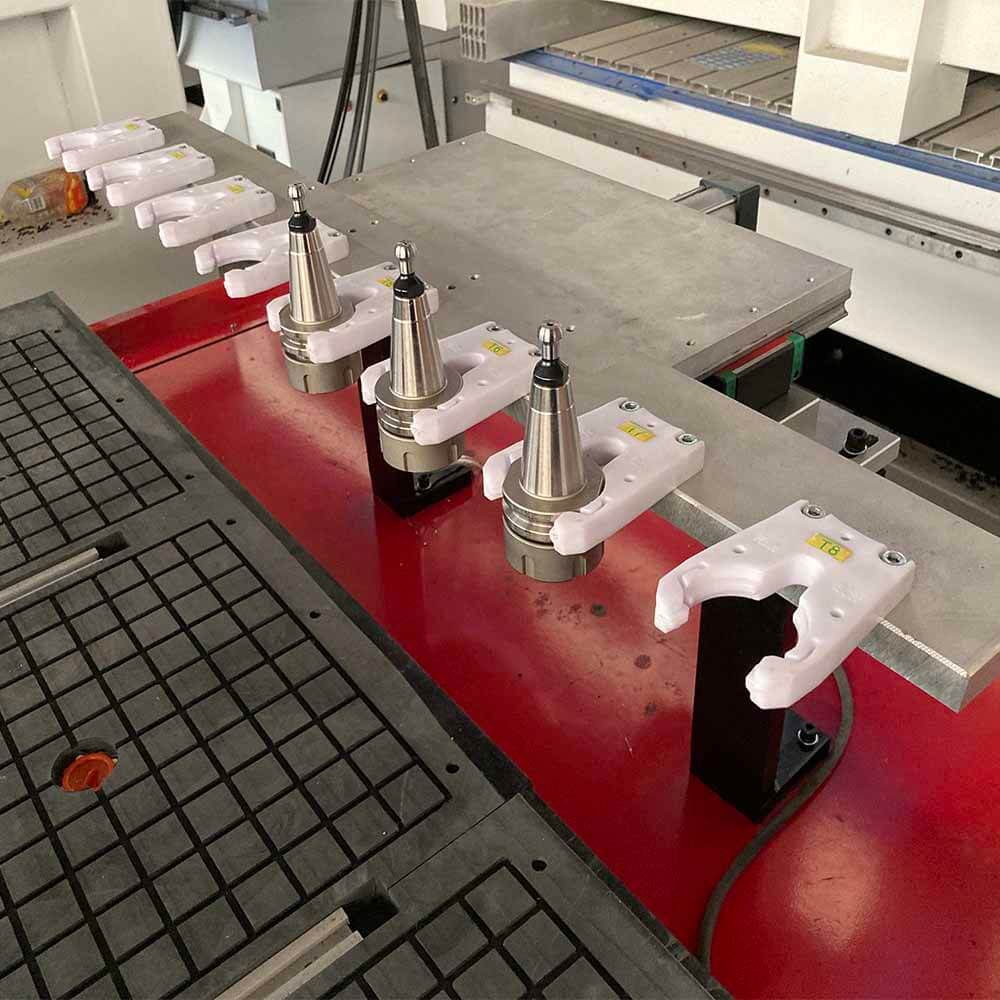

4. This 4-axis ATC Milling Machine comes with a carousel tool magazine that holds 12 tools, allowing for quick and efficient tool changes.
5. An automatic tool sensor enables the machine to adjust for variations in tool length.
6. It includes a powerful suction vacuum pump that can be air-cooled, water-cooled, or utilize a Becker pump.
7. The Taiwan SYNTEC control system features a separate keyboard, color LCD display, and the ability to modify parameters and automatically change tools.
8. A strong dust collector ensures a clean working environment during operation.
9. The automatic lubrication system allows for easy periodic maintenance with just a single touch.
Specification of 4 Axis CNC Router With Rotary Device for Queen Leg Statue Carving
01 | X,Y,Z Working Area | 1500x3000x600mm*180degree |
02 | Table Size | 2150×3540mm |
03 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
04 | X,Y,Z Re positioning Accuracy | ±0.03mm |
05 | Table Surface | Vacuum and T-slot Combined (Option: T-slot table) |
06 | Frame | Welded structure |
07 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
08 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
09 | Max. Power Consumption | (Without Spindle) 5.5kw |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 3.0/4.5/6/7KW |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Yaskawa servo |
15 | Working Voltage | AC380V/50/60Hz,3PH |
16 | Command Language | G Code |
17 | Operating System | Syntec Control System |
18 | Computer Interface | Enthernet, CF Card |
19 | Flash Memory | 2G |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
23 | Running Environment Temperature | 0 – 45 Centigrade |
24 | Relative Humidity | 30% – 75% |
25 | Packing Size | 4450x2250x2200mm |
26 | N.W. | 2380KG |
27 | G.W. | 2580KG |
Optional Parts | 9KW HSD Auto Spindle | |
Dust Collector/Dust hoods for Liner rails | ||
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/Panasonic Servo Motors |
Application of 4 Axis CNC Router With Rotary Device for Queen Leg Statue Carving
Molds: Suitable for materials like wood, wax, gypsum, foams, and more.
Furniture: Ideal for crafting wooden doors, cabinets, office furniture, tables, chairs, and frames for doors and windows.
Wooden Products: Used for producing items such as voice boxes, gaming cabinets, computer desks, and tables for sewing machines and musical instruments.
Plate Processing: Effective for working with insulation components, plastic chemical parts, PCBs, interior automotive elements, bowling lanes, stairs, anti-bait boards, and various carbon-based compounds like epoxy resin, ABS, PP, and PE.
Decorative Industry: Engraving and milling of materials including acrylic, PVC, MDF, artificial stone, organic glass, plastics, and soft metals such as copper.

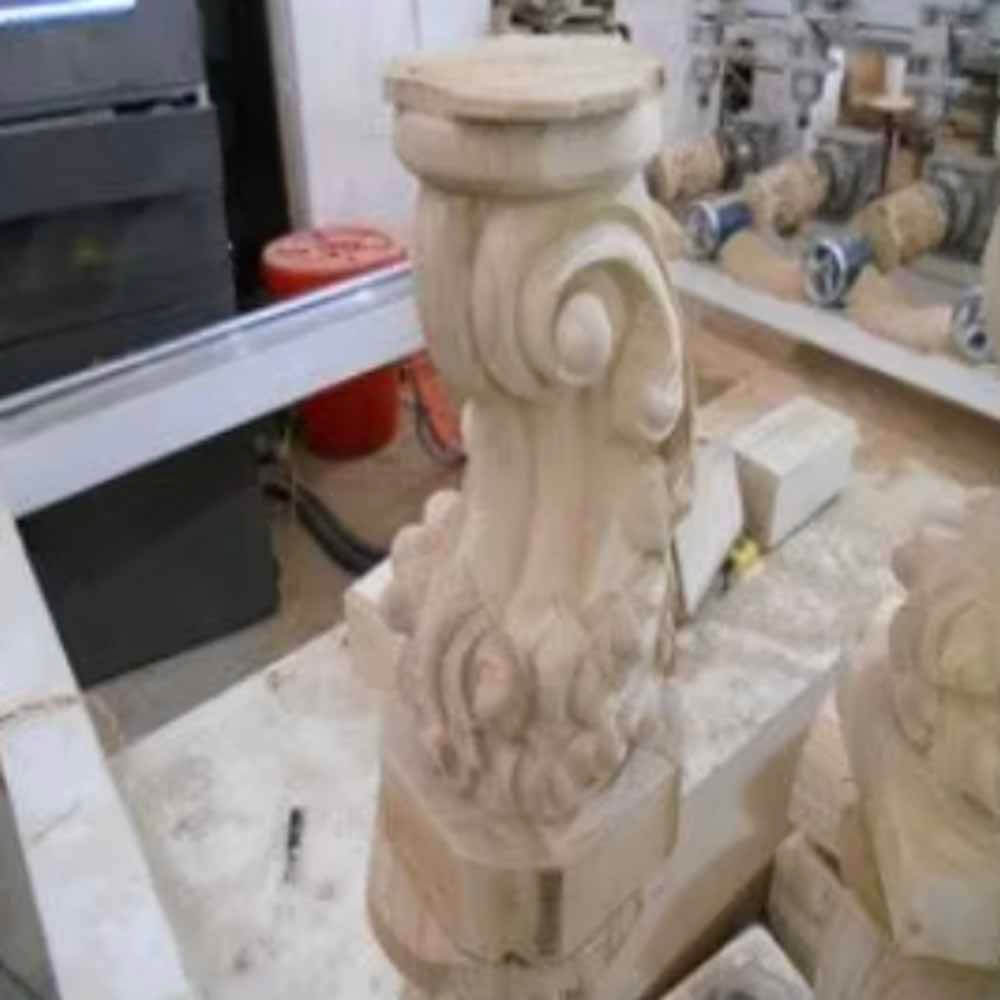

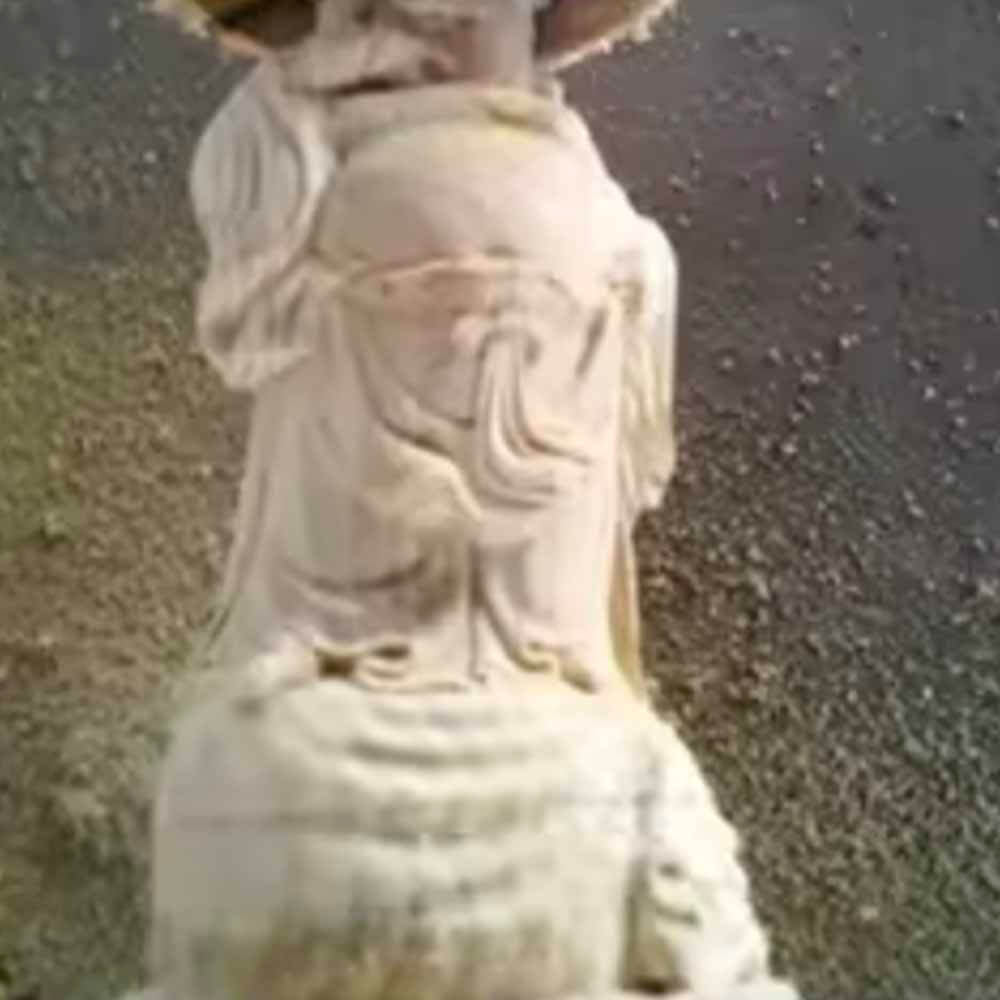

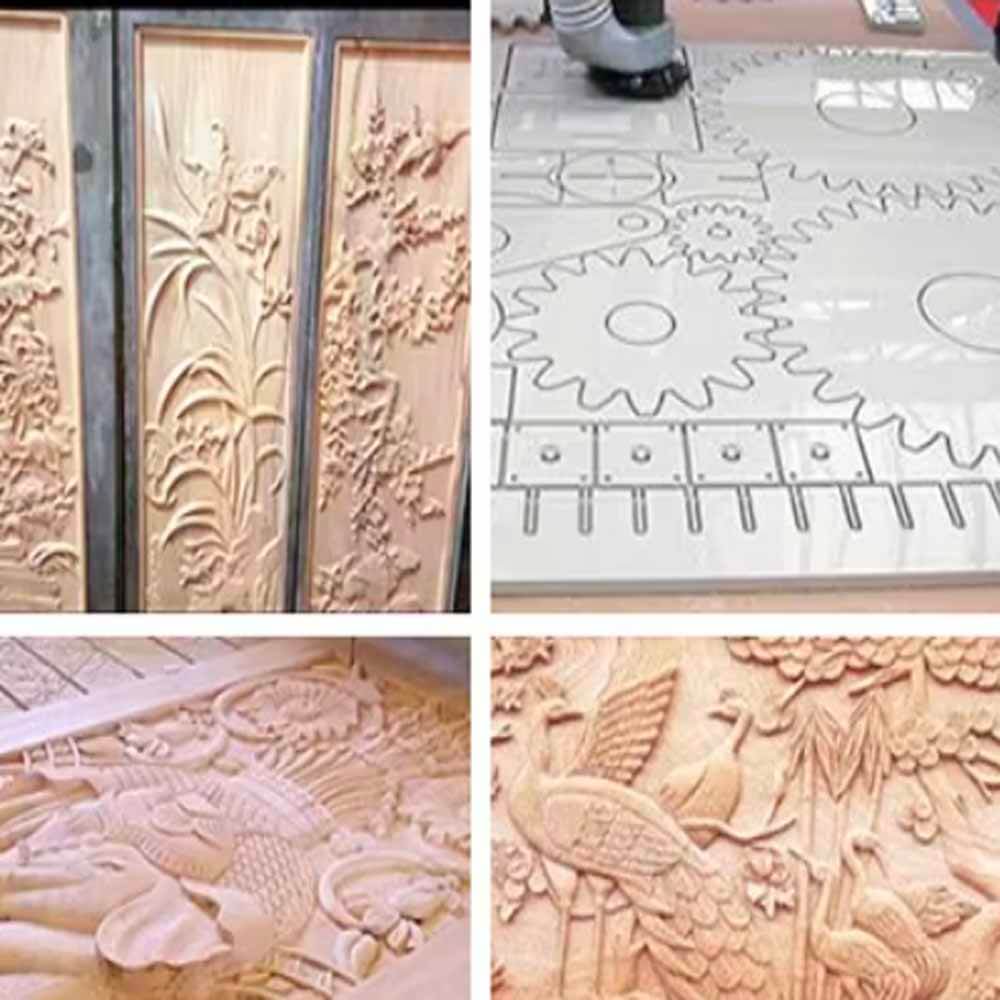

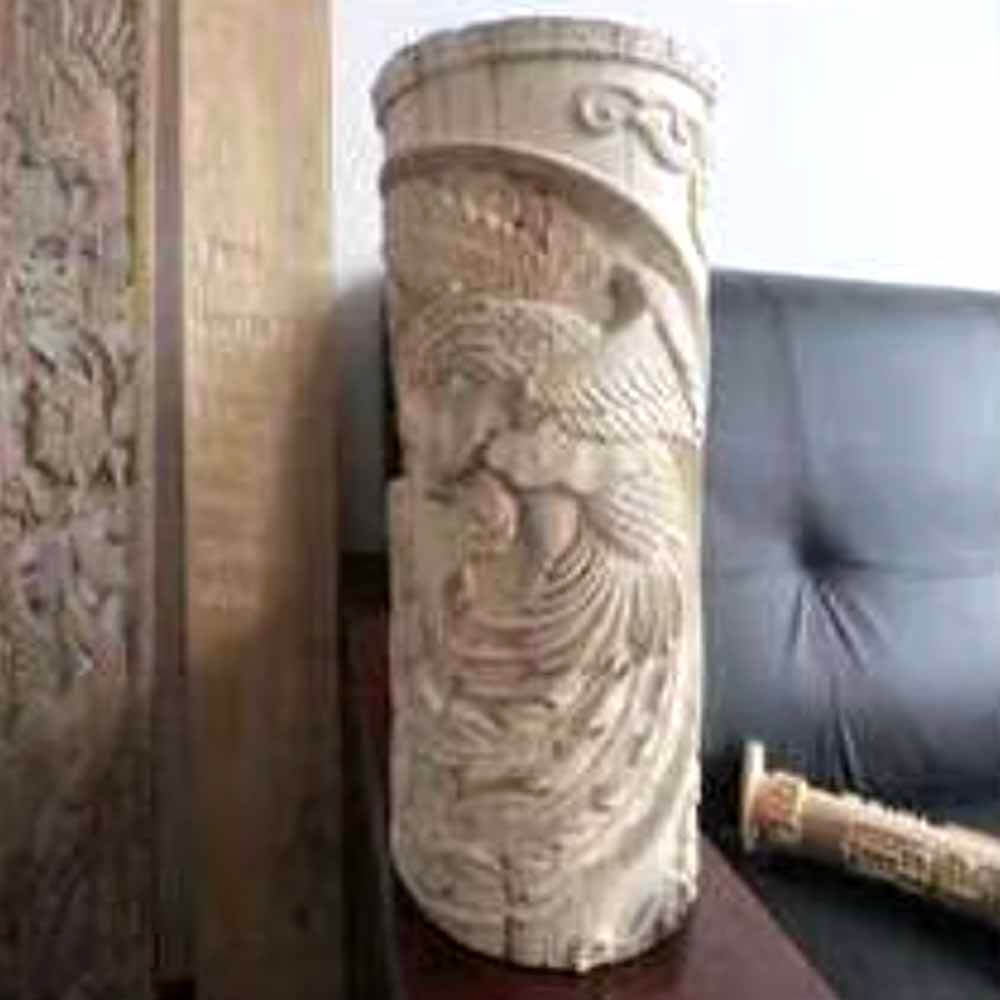

Samples of 4 Axis CNC Router With Rotary Device for Queen Leg Statue Carving
FAQ of 4 Axis CNC Router With Rotary Device for Queen Leg Statue Carving
What is a 4 Axis CNC Router with Rotary Device?
A 4 Axis CNC Router with a Rotary Device allows for enhanced carving capabilities by adding a rotary axis (A-axis) to the standard three axes (X, Y, Z), enabling complex shapes and detailed 3D carvings.
What is the maximum carving size for the Queen leg statues?
The maximum carving size depends on the specific model of the CNC router, but it typically accommodates larger pieces to create detailed statues, such as those resembling Queen legs.
What kind of software is compatible with the router?
The router usually supports popular CAD/CAM software, such as Artcam, Type3, and Ucancam, which allows for the creation and editing of intricate designs suitable for statue carving.
What materials can be carved using this CNC router?
This router is suitable for a variety of materials, including wood, acrylic, foam, and soft metals, making it ideal for creating intricate designs in Queen leg statues.

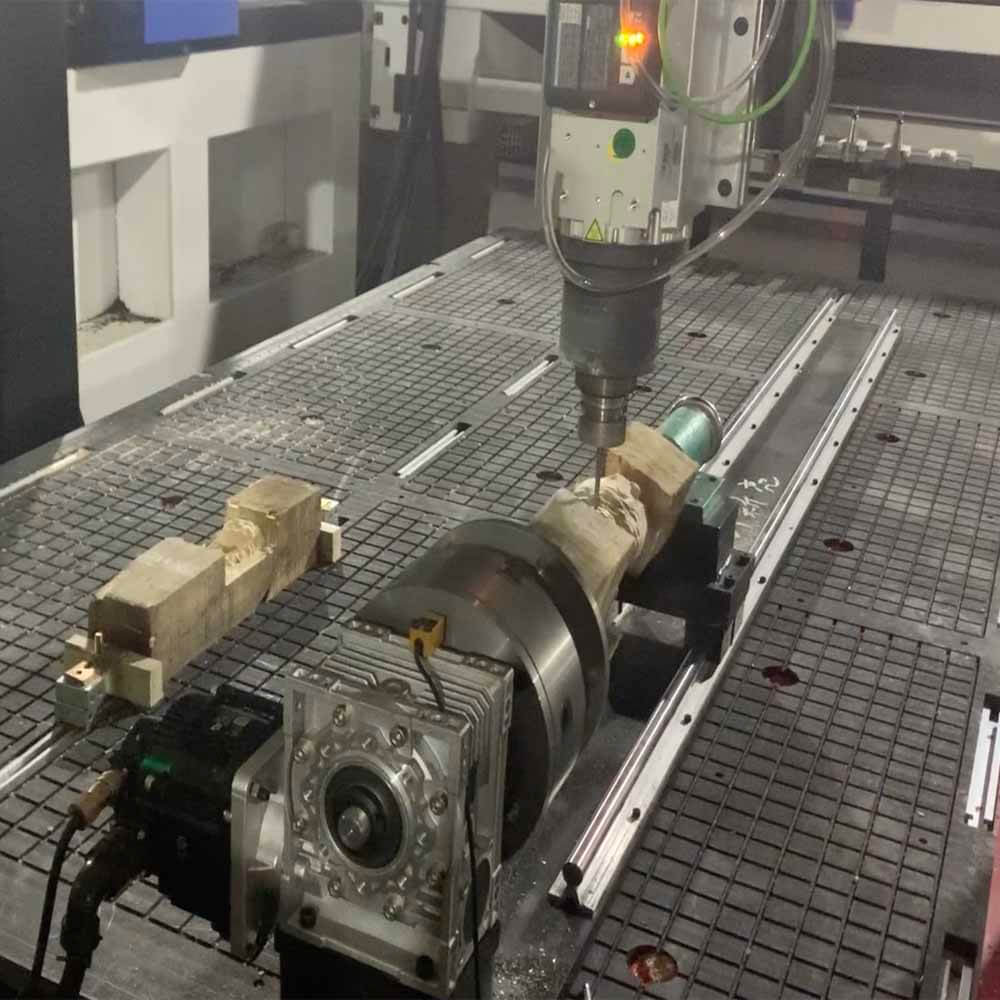

How does the rotary device enhance the carving process?
The rotary device enables the machine to carve cylindrical objects and complex curves by rotating the workpiece, allowing for detailed designs that are difficult to achieve with standard 3-axis machines
How easy is it to operate the CNC router?
Most 4 Axis CNC Routers come with user-friendly software and control systems, allowing operators to easily input designs and control the carving process, even for beginners.
