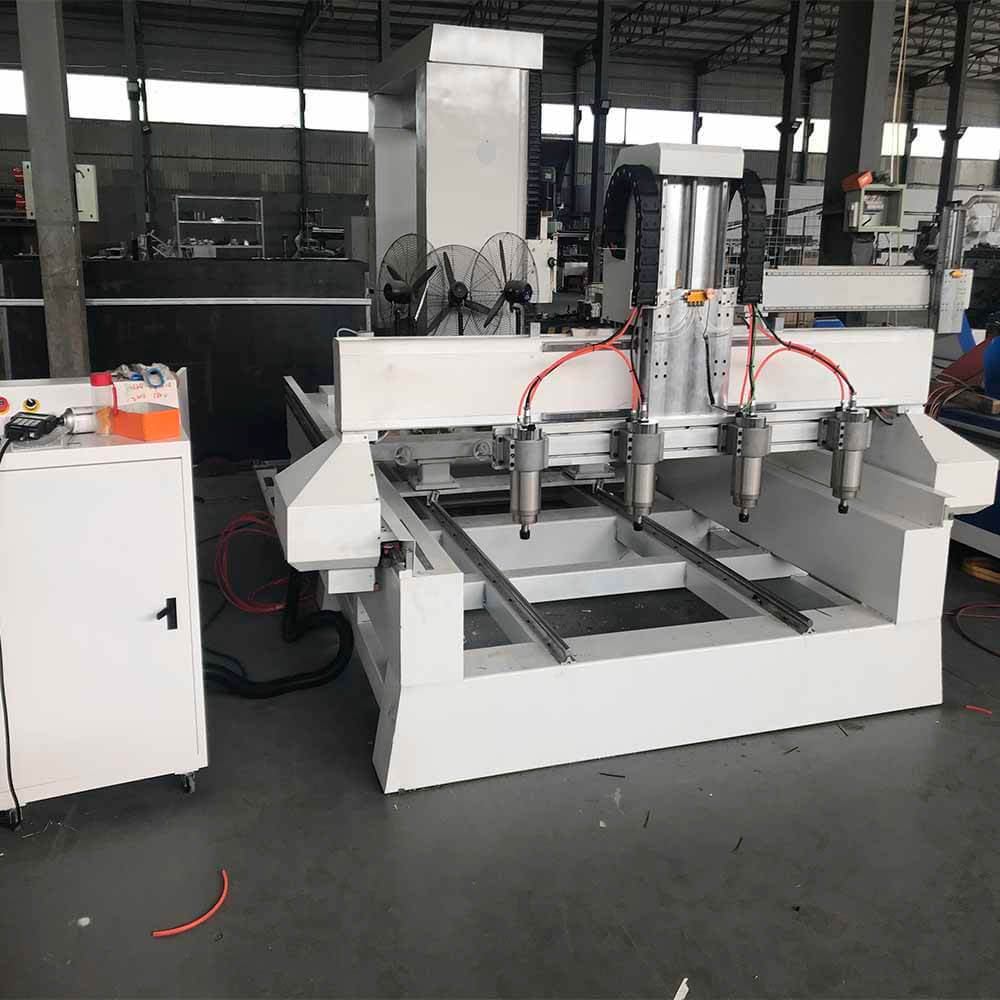

Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines

Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines
  • Model:ET-1325-4R
  • Brand: EXTRACNC
  • Price: $5500.00 to $20000.00 / Set based on the configuration
  • Payment Terms: Bank Transfer (T/T), Trade Assurance
  • Warranty: 1 Year Limited Warranty for Entire Machine
  • Supply Ability: 30 Sets / Month
  • Support: Customized as Customer Rquest
GET A QUOTE
SEND EMAIL
WHATSAPP
The rotary axis CNC router is designed for machining wood, foam, rubber, aluminum, and plastic, specializing in cylindrical parts like table legs, handrails, and 3D sculptures. Perfect for woodworkers, fabricators, and furniture makers, it offers precise rotary axis machining. We provide expert guidance and support to help bring your 4th axis CNC projects to life.

Description of Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines

The Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machine is a powerful, cost-effective solution for precision woodworking and custom wood processing. Featuring a 4th rotary axis, this CNC router enables intricate 3D engraving, milling, and carving on both flat and curved wooden surfaces, making it ideal for furniture manufacturing, custom wood designs, decorative wood pieces, and more. With advanced features like high-speed cutting, automatic tool changers, and superior precision, it offers unmatched versatility for creating detailed wood patterns, sculptures, and components. Perfect for woodworking shops, artisans, and small businesses looking to enhance productivity and reduce costs.

Features of Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines

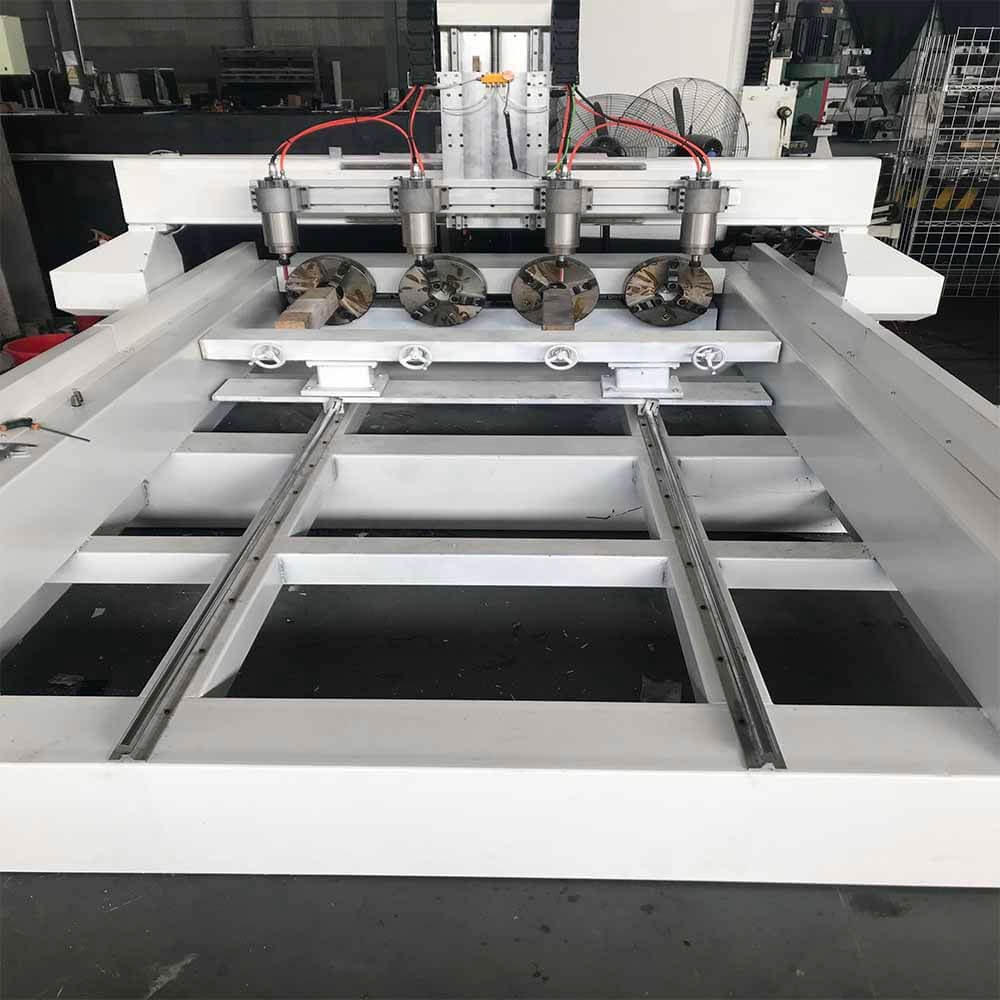

The 4-axis CNC machine features 48 rotaries and 4 spindles, which can operate simultaneously or independently, providing flexibility for various tasks.

With a scanner or a designed photo, the machine can perform both 3D and 2D carvings with high precision.

The entire machine is constructed with a seamless steel structure, ensuring excellent stability and resistance to deformation over time.

Wide compatibility with CAD/CAM design software such as Type 3, Artcam, Castmate, Wentai, and more for efficient design and production.

It includes a re-carving function that allows the machine to resume work after a breakpoint or power failure, ensuring seamless operation.

The machine is equipped with advanced Yaskawa servo motors and a DSP control system, offering smooth and reliable performance for complex machining tasks.

Specification of Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines

Model & Name ET-1325-4R
Brand EXTRACNC
Working Area 1300*2500*200mm
Control system DSP control system
Spindle 3.2kw water cooling spindle*4
Motor and drivers Yaskawa servo motor and drivers
Guide rail Taiwan HIWIN guide rails
X,Y axis transmission High precision helical rack and pinion
Z axis transmission Taiwan TBI ball screw transmission
Inverter Fuling inverter
Electronic components France Schneider electronic components
Software Artcam software
Limit switch Japan Omron limit switch
Tool sensor Yes
Lubrication system Manual/Auto
Working area 1300*2500*200mm
Spindle power 3.2KW
Spindle speed 24000RPM
X,Y,Z Traveling Positioning Accuracy ±0.01/2000mm
MAX. Traveling Speed ≥40000mm/min
MAX. Working Speed ≥20000mm/min
Commend Code G Code
N.W./G.W. 1600kg/ 1800kg
Package size 3.7m*2.2m*2.2m
Diameter of tools 3.175, 4, 6, 8, 10, 12.7mm
Runing environment Temperature:0℃~45℃ Relative Humidity: 30%~75%
Working voltage AC 110V/220V/380V(customer demand)

Application of Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines



  1. Wood Furniture Industry: Ideal for crafting wave plates, intricate patterns, antique-style furniture, wooden doors, screens, MDF panels, craft sashes, composite gates, cupboard doors, interior doors, sofa legs, headboards, and more.

  2. Advertising Industry: Perfect for creating advertising signs, acrylic engraving and cutting, crystal lettering, blasting molds, and various other advertising material products.

  3. Mold Industry: Suitable for producing molds from copper, aluminum, iron, as well as non-metallic materials like artificial marble, sand, plastics, PVC pipes, wooden planks, and other similar substances.

  4. Relief Sculptures and 3D Engraving: Excellent for detailed relief carving and 3D engraving projects, bringing artistic designs to life with precision.

  5. Cylinder Engraving: Perfect for engraving cylindrical objects like wooden table legs and similar round shapes.

Samples of Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines

Get a Quote

The Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machine is a versatile, high-performance solution designed for precision woodworking. Equipped with a 4th rotary axis, this machine allows for intricate 3D carving, engraving, and milling on cylindrical and curved wooden surfaces. Ideal for wood furniture makers, artisans, and custom woodworking shops, it combines affordability with advanced features to enhance production efficiency, accuracy, and flexibility in creating complex wood designs.

FAQ of Affordable 3D Multi 4th Rotary Axes Wood CNC Router Machines

What is the 4th rotary axis used for?

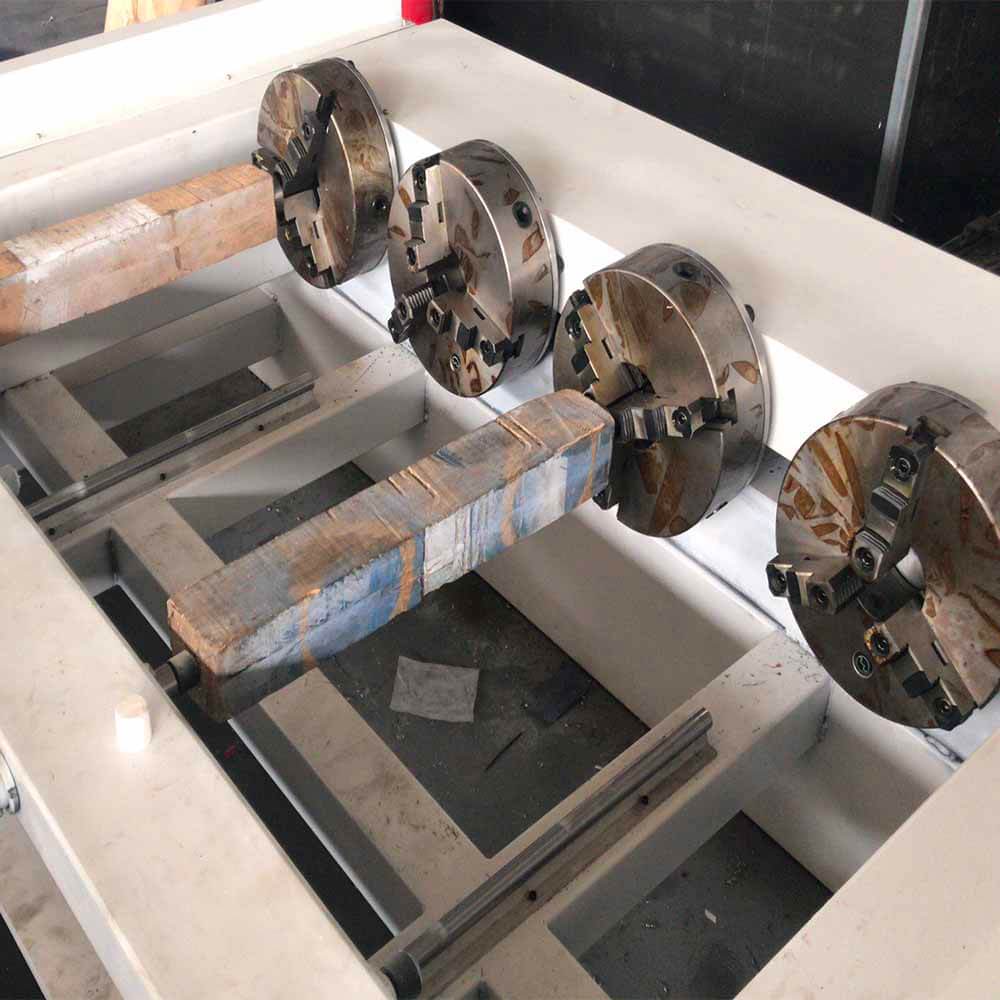

The 4th rotary axis allows the machine to rotate the material, enabling precise engraving, carving, and milling on cylindrical or curved surfaces such as table legs, chair spindles, and custom wood designs.

What kind of projects is this machine best for?

It's perfect for creating intricate wood carvings, custom furniture parts, decorative elements, 3D wood sculptures, and more.

Can I use this CNC router for both 2D and 3D carving?

Absolutely! The router supports both 2D and 3D engraving and carving, making it versatile for a wide variety of woodworking projects.

Is the machine suitable for beginners?

Yes, the machine is beginner-friendly, with easy-to-use software and intuitive controls. We also provide comprehensive training and support.

What materials can the CNC router process?

This machine is ideal for processing a wide range of materials, including wood, foam, rubber, plastic, and aluminum.

What software is compatible with this CNC router?

The router is compatible with popular CAD/CAM software like Artcam, Vectric, and Type3, making it easy to create and import designs.
