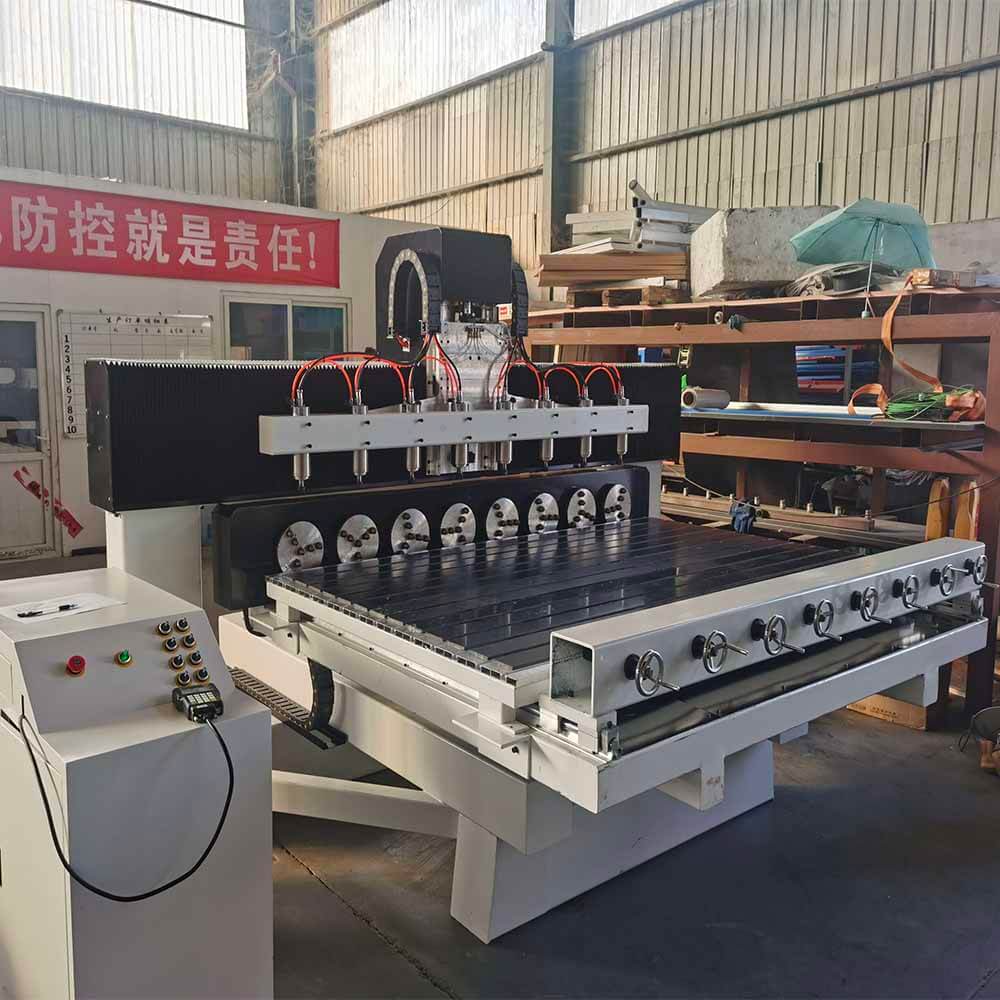

Best 4 Axis Multi Heads Wood CNC Router with Multi spindles

Best 4 Axis Multi Heads Wood CNC Router with Multi spindles
  • Model:ET-1225-8R
  • Brand: EXTRACNC
  • Price: $12500.00 to $32000.00 / Set based on the configuration
  • Payment Terms: Bank Transfer (T/T), Trade Assurance
  • Warranty: 1 Year Limited Warranty for Entire Machine
  • Supply Ability: 30 Sets / Month
  • Support: Customized as Customer Rquest
GET A QUOTE
SEND EMAIL
WHATSAPP

The Best 4 Axis Multi-Head Wood CNC Router with Multiple Spindles is designed for precise rotary wood carving and 3D relief carving, ideal for creating cylindrical sculptures, wood crafts, table legs, spindles, stair balusters, and Roman columns. This powerful machine allows you to produce up to 8 identical projects simultaneously, improving efficiency and productivity in woodworking and craftsmanship.

Description of Best 4 Axis Multi Heads Wood CNC Router with Multi spindles

The 8-Spindle 4th Axis Rotary CNC Router is a highly efficient, multi-functional machine designed for both rotary and flat engraving. With a movable working table and high engraving accuracy, it supports simultaneous processing of multiple materials, boosting productivity. The machine features 8 independent spindles, each controlled by a separate frequency converter, ensuring enhanced engraving efficiency and precision. It’s equipped with advanced components such as a high-speed spindle motor, HIWIN linear guides, and a cast iron frame for stability and durability. The machine is compatible with various CAD/CAM software and offers user-friendly operation, ideal for wood carving, acrylic cutting, and 3D billboard production. Its anti-dust system and long-lasting parts ensure longevity and reliable performance over time.

Features of Best 4 Axis Multi Heads Wood CNC Router with Multi spindles

  • The 4th axis CNC machine, featuring 8 rotaries and 8 spindles, is designed for cylindrical engraving. Each spindle can operate independently or simultaneously, with a maximum working area of 150mm in diameter and 1000mm in length.
  •  It supports both 2D and 3D engraving and carving, capable of processing designs from scanned images or custom-created graphics.
  • Built with a seamless steel frame, the machine offers exceptional stability and resistance to deformation, ensuring long-term durability.
  • The 4th rotary axis enables precise carving of cylindrical workpieces, making it ideal for turning and engraving curved surfaces.
  • Fully compatible with popular CAD/CAM software such as Type3, Artcam, Castmate, and Wentai, allowing for seamless design integration.
  • The machine includes a re-carving function that allows it to resume work from the last point after a power interruption or processing stop.
  • Powered by high-performance Yaskawa servo motors and a DSP (A18) control system, the machine delivers exceptional precision and efficiency.

Specification of Best 4 Axis Multi Heads Wood CNC Router with Multi spindles

Machine model ET-R1225-8R
XY working area 1200*250 mm
Z working area 300 mm
Table size 1600*3100 mm
Spindle 8*2.2KW water cooling spindle
Speed of spindle 0-24000 rpm/min
Max. speed 60 m/min
Max. working speed 30 m/min
Working delicacy 0.05 mm
Table movable table
Command G code*u00* mmg*plt
Surrounding for software Windows98/2000/xp/win7
power AC380 three phases 50/60hz
Work mode Servo motor
Structure Steel structure, square orbit, ball screw
Control software RichAuto 4 axis A18 DSP handheld

Application of Best 4 Axis Multi Heads Wood CNC Router with Multi spindles

  • Woodworking Industry: Used for creating intricate wave plates, detailed patterns, vintage-style furniture, wooden doors, screens, MDF panels, decorative sashes, composite gates, cupboard doors, interior doors, sofa legs, headboards, and more.
  • Advertising Sector: Ideal for crafting advertising signs, logo engraving, acrylic cutting and engraving, creating crystal letters, blast molding, and other promotional materials.
  • Mold Manufacturing: Perfect for carving molds from materials such as copper, aluminum, and iron, as well as non-metallic molds made from artificial marble, sand, plastic sheets, PVC pipes, wooden planks, and other composites.
  • Sculpture and 3D Engraving: Excellent for creating relief sculptures and detailed 3D carvings, adding depth and texture to various materials.
  • Cylindrical Engraving: Specialized for engraving and carving cylindrical objects such as wooden table legs, spindles, columns, and similar round shapes.

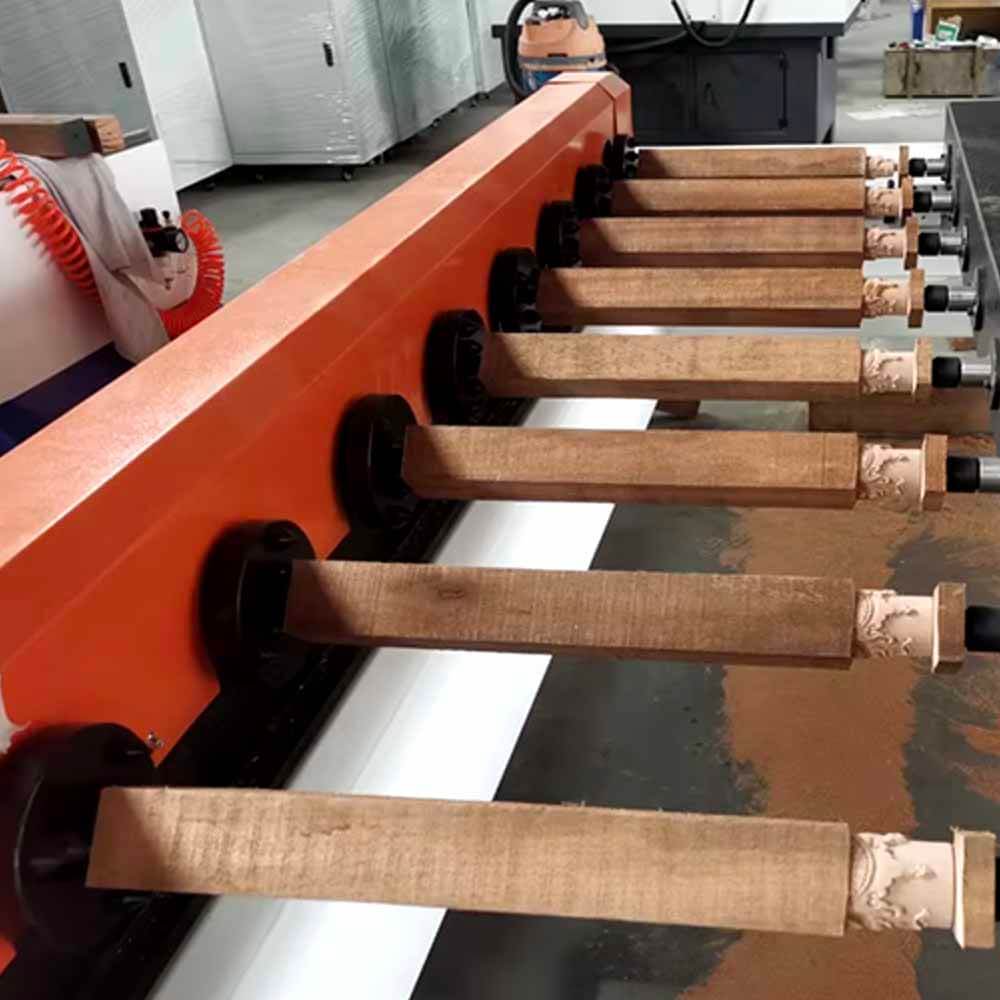

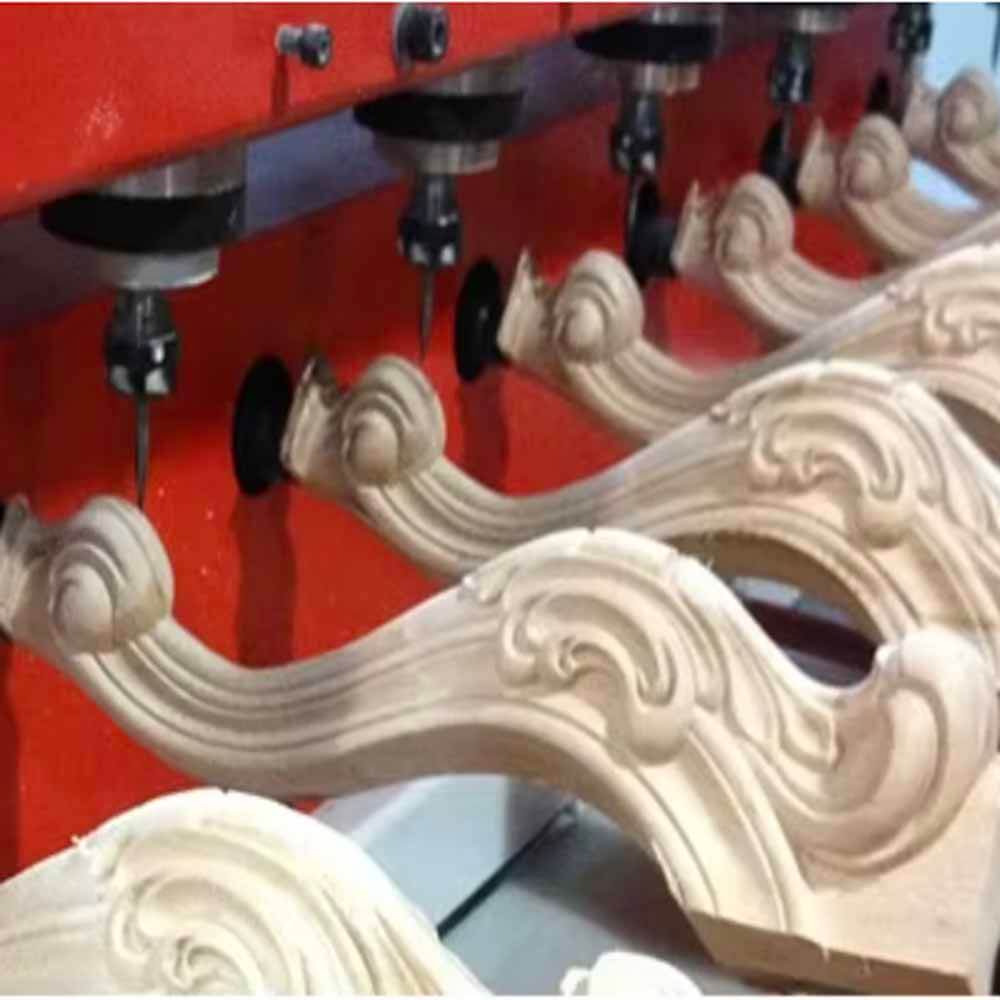

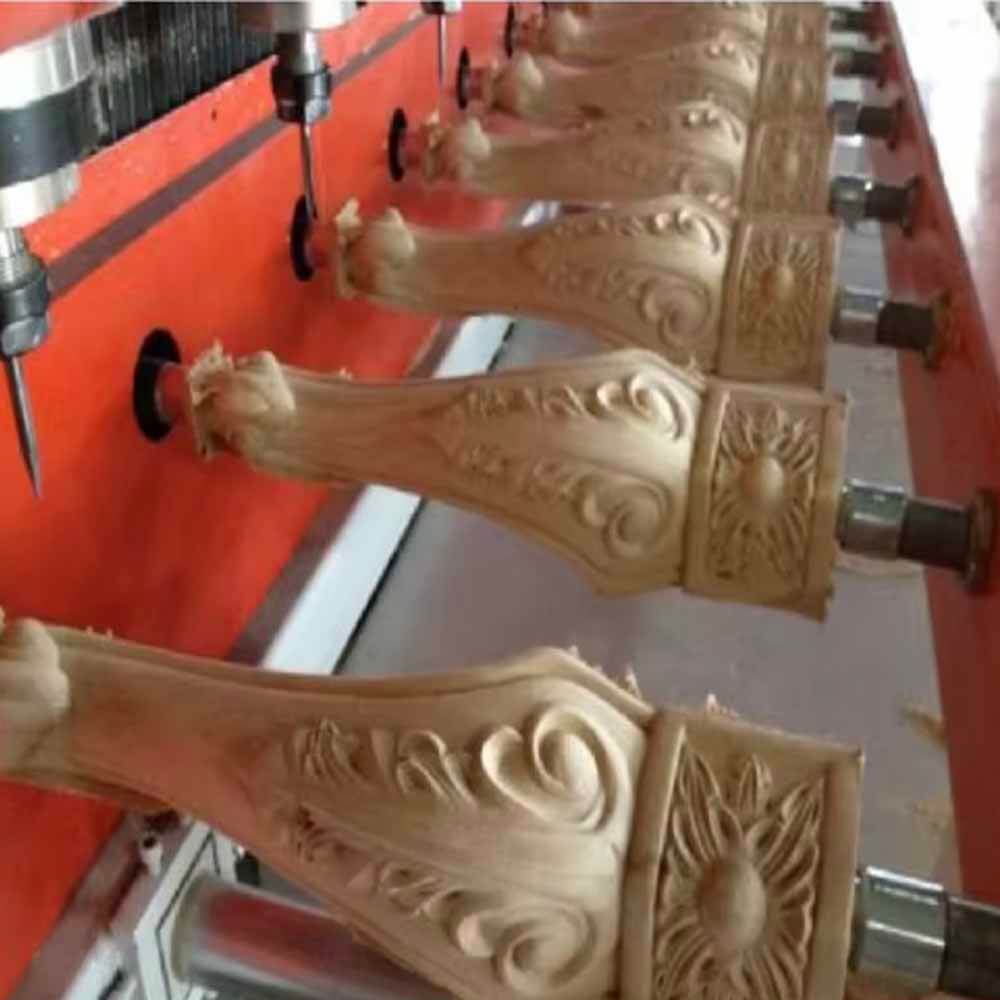

Samples of Best 4 Axis Multi Heads Wood CNC Router with Multi spindles

Get a Quote

The 8-Spindle 4th Axis CNC Router is perfect for industries like wood furniture, advertising, and die making. It efficiently engraves and cuts wood, acrylic, metal, and plastics for creating furniture parts, signs, molds, and 3D sculptures. With its rotary axis, it can also engrave cylindrical objects like table legs and stair balusters.

FAQ of Best 4 Axis Multi Heads Wood CNC Router with Multi spindles

What materials can the Best 4 Axis Multi Heads Wood CNC Router process?

This machine is ideal for processing wood, MDF, acrylic, plastic, foam, and other non-metal materials. It can also handle some light metal work, including aluminum.

How many spindles does this CNC router have?

The router is equipped with multiple spindles, typically up to 8, allowing for simultaneous operations on multiple workpieces.

What is the advantage of using multiple spindles?

Multiple spindles allow for enhanced productivity by enabling the machine to complete multiple operations at once, reducing processing time significantly.

Can the machine handle complex 3D carvings?

Yes, the router is designed for high-precision 3D carvings, reliefs, and intricate detailing, making it suitable for advanced woodworking and artistic projects.

What is the size of the working area?

The working area typically measures around 1200 x 2500 mm, with a Z-axis range of up to 300 mm, providing ample space for various projects.

Does the CNC router come with a dust collection system?

Many models come with an integrated dust collection system to keep the working area clean and to protect the machine from dust buildup, increasing longevity.
