Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner

Entry Level 4x8 ATC CNC Router with Tool Changer for Beginner
Entry Level 4x8 ATC CNC Router with Tool Changer for Beginner Entry Level 4x8 ATC CNC Router with Tool Changer for Beginner
Entry Level 4x8 ATC CNC Router with Tool Changer for Beginner
Entry Level 4x8 ATC CNC Router with Tool Changer for Beginner
Entry Level 4x8 ATC CNC Router with Tool Changer for Beginner
  • Model:ET-1325ATC-1
  • Brand: EXTRACNC
  • Price: $5500.00 to $20000.00 / Set based on the configuration
  • Payment Terms: Bank Transfer (T/T), Trade Assurance
  • Warranty: 1 Year Limited Warranty for Entire Machine
  • Supply Ability: 30 Sets / Month
  • Support: Customized as Customer Rquest
GET A QUOTE
SEND EMAIL
WHATSAPP

The Entry-Level 4×8 ATC CNC Router with Tool Changer is designed for beginners and is ideal for processing materials such as wood, slate, acrylic, and other non-metals with high precision. This CNC router and milling machine is built to deliver exceptional performance and accuracy.

Description of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner

The Entry-Level 4×8 ATC CNC Router is perfect for beginners processing non-metal materials like wood, MDF, and acrylic. With a robust frame and automatic tool changer, it ensures precision and efficiency. Featuring a user-friendly DSP control system and optional customization, it’s ideal for cutting, engraving, and drilling in woodworking, crafts, and advertising applications.

Features of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner

  • Automatic Tool Changer (ATC): Equipped with an efficient ATC system for seamless tool switching, enhancing productivity and reducing downtime.
  • Robust Machine Frame: Heavy-duty structure formed using CNC planer-type milling for superior stability and durability.

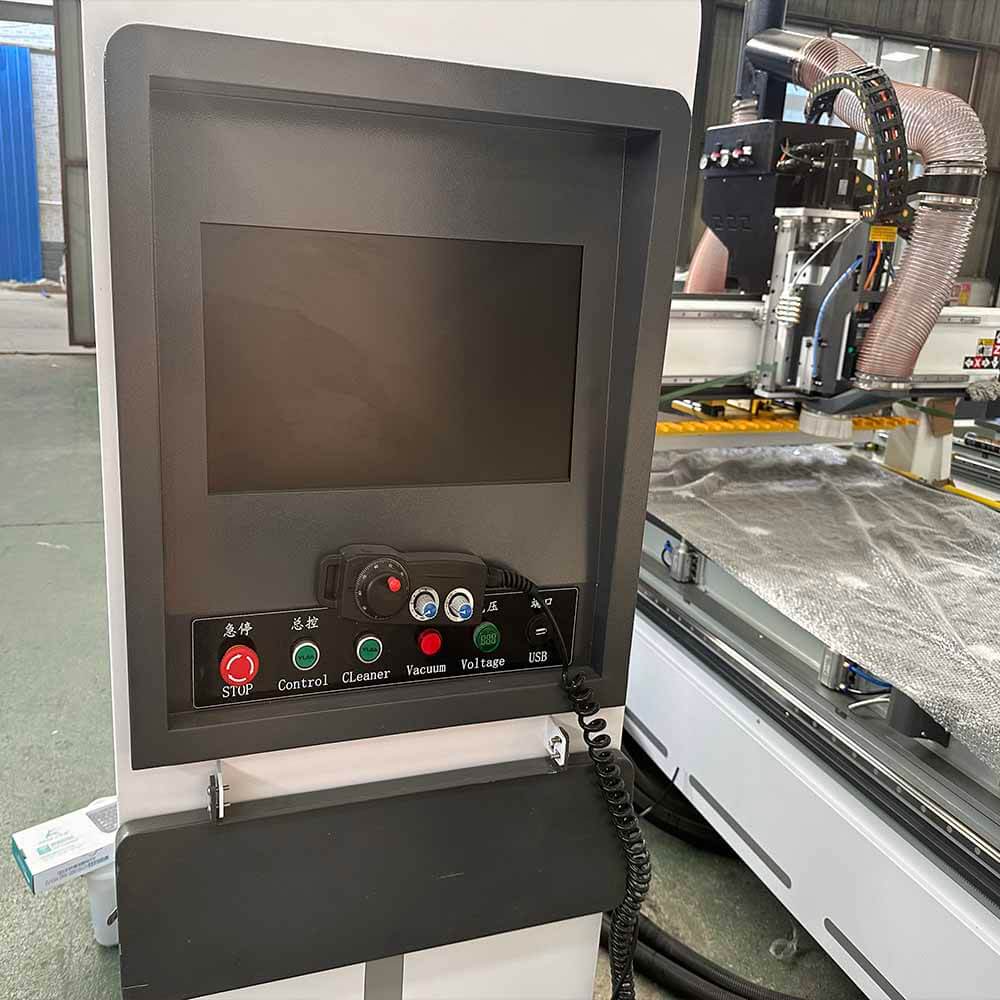

  • User-Friendly DSP Control System: Integrated advanced DSP control system with an independent power supply, ensuring fast calculations, strong anti-interference capabilities, and effortless operation.
  • High Precision and Accuracy: Delivers exceptional accuracy in cutting, engraving, and milling, ideal for complex designs and detailed work.
  • Versatile Material Handling: Suitable for non-metal materials like wood, MDF, acrylic, and PVC, as well as soft metals like aluminum.
  • Customizable Options: Features can be upgraded to include drilling units, oscillating knives, or C-axis aggregate heads for tailored applications.
  • Efficient Dust Collection: Includes a dust collection system to maintain a clean workspace and prolong the machine’s lifespan.
  • High-Speed Spindle: Powered by a reliable, high-speed spindle for efficient cutting and engraving.
  • Large Working Area: Generous 4×8 feet working area accommodates larger projects, perfect for furniture making and signage.
  • Entry-Level Friendly: Designed with beginners in mind, offering easy operation and straightforward maintenance.



Specification of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner

ModelET-1325-ATC-1
X,Y,Z Working Area1300X2500X200mm
Table Size1855X3340mm
X,Y,Z,Traveling Positioning
Accuracy		±0.03/300mm
X,Y,Z,Repositioning Positioning Accuracy±0.05mm
Lathe BedStrong lathe bed
GantrySteel structure gantry design
Guide RailTaiwan Hiwin Square Rail with X,Y,Z axis
XY Z TransmissionGear rack with X and Y axis
Imported Ball Screw with Z axis
Spindle Motor9kw HQD Air cooling spindle special for tool changer
Max. Speed0-45000mm/min
Max. Working Speed0-25000mm/min
Spindle Speed0-24000RPM
Drive ModeServo system
Working VoltageAC220V/380V, 50/60Hz
CommandG Code, *uoo, *mmg, *plt
Inverter11KW Fuling inverter
Control SystemTaiwan LNC control system
Typeset SoftwareARTCAM(can support any G-code software)
MotorLeadshine Servo Motor
DriverServo Driver
Tools coolingOIL sprayer pump

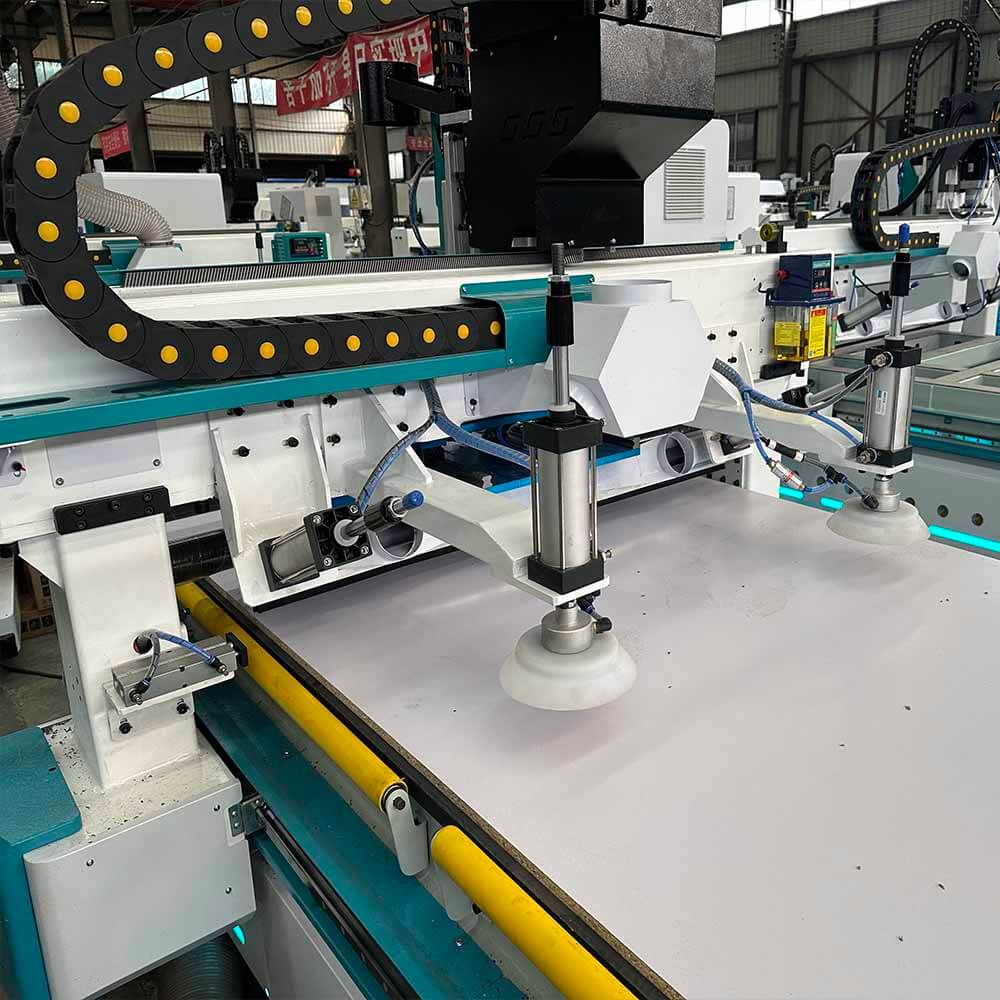

Lathe TableVacuum table with 8 sections +6 vacuum cups
Vacuum Pump5.5KW VACUUM Pump
Air compressor3.0KW
Tool Magazine8pcs ISO30 tool holder
Dust Collector3.0KW
Electricity cabinetIndependent Cabinet
Tool sensorTOOL SENSOR
ColletER32
X,Y Working Delicacy<0.01mm
SoftwareUcancam, Artcam
Running circumstanceTemperature: 0℃～45℃, Relative humidity: 30%～75%

Application of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner

  • Applied Materials
    Non-metal Materials: Suitable for materials like wood, MDF, plywood, acrylic, PVC, foam, and packaging materials.
    Aluminum: Can efficiently handle aluminum for various applications.
    Applied Functions
    Vertical Operations: Basic functions include vertical cutting, 2D/3D engraving (milling or carving), and drilling.
    Optional Enhancements: Horizontal or angled operations can be customized. For example, side drilling can be enabled with the addition of a drilling unit or a C-axis with an aggregate head. For cutting packaging boxes, an oscillating knife can be added to the configuration to meet specific needs.
  • Applied Industries
    Craft and Gift Industry: Engraving text or graphics on souvenirs, handicrafts, metal artworks, and dials.
    Advertising Industry: Cutting and engraving signboards, marble, copper, molds, fonts, metal signs, and brand logos.
    Woodworking Industry: Ideal for creating classical and antique furniture, wooden carvings, gift boxes, redwood jewelry cases, ink-stone designs, and decorative sculptures.
    Model Industry: Used for crafting company nameplates, architectural models, badges, display panels, trade fair signage, building numbers, and molds for shoes, biscuits, candies, and chocolates.
    Other Applications: Suitable for artistic projects like portraits, landscape carvings, calligraphy inscriptions, seal carving, and other flat-surface designs.

Samples of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner

Get a Quote

The Entry-Level 4×8 ATC CNC Router with Tool Changer is perfect for cutting, engraving, and drilling non-metal materials like wood, MDF, acrylic, PVC, and foam. Ideal for woodworking, advertising, craft making, and packaging industries, it delivers precision and efficiency for both 2D and 3D designs.

FAQ of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner

What materials can this CNC router process?

It can handle non-metal materials such as wood, MDF, plywood, acrylic, PVC, foam, and more.

What industries can benefit from this machine?

It’s ideal for woodworking, advertising, craft making, packaging, and model industries.

What are the machine’s primary functions?What are the machine’s primary functions?How does the automatic tool changer (ATC) function improve efficiency?

The router is capable of vertical cutting, 2D/3D engraving, carving, and drilling. Optional upgrades allow for side drilling or additional functionalities.

Does the machine support custom upgrades?

Yes, features like oscillating knives, drilling units, or a C-axis aggregate head can be added based on specific production needs.

What is the size of the working area?

The machine offers a 4×8 ft (1300×2500mm) working area, perfect for standard material sheets.

What kind of control system does it use?

It comes with an advanced DSP control system for fast calculation, independent power, and strong anti-interference performance.
