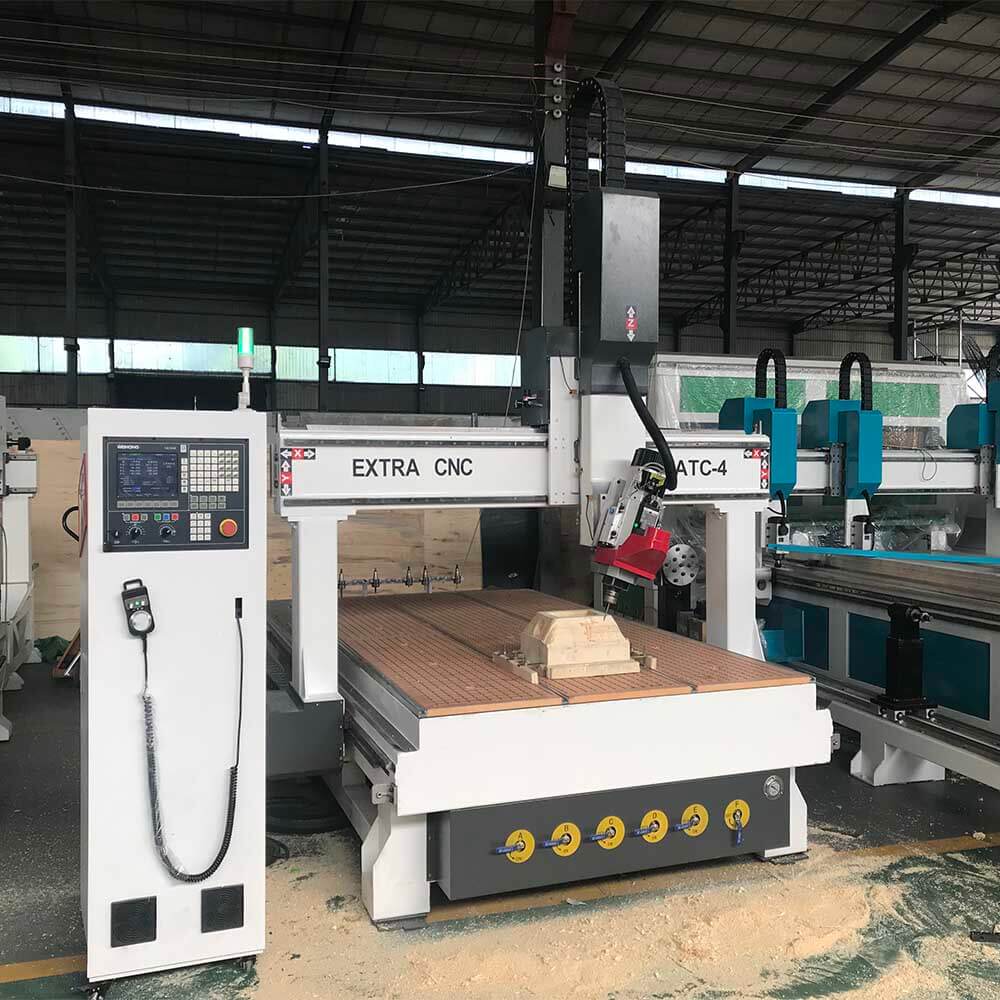

Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit

Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit
  • Model:ET-1530ATC-4
  • Brand: EXTRACNC
  • Price: $10000.00 to $30000.00 / Set based on the configuration
  • Payment Terms: Bank Transfer (T/T), Trade Assurance
  • Warranty: 1 Year Limited Warranty for Entire Machine
  • Supply Ability: 30 Sets / Month
  • Support: Customized as Customer Rquest
GET A QUOTE
SEND EMAIL
WHATSAPP

Sell industrial 4-axis CNC woodworking engraving machine with linear auto tool changer spindle kit for engraving, milling, drilling, cutting with 9KW HSD spindle kit and rotary carousel tool holder for woodworking.

Description of Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit

The Industrial 4-Axis CNC Wood Milling Machine with Linner ATC Spindle Kit operates on the X, Y and Z axes like a 3-axis machine, but it also includes a rotation around the X-axis, known as the A-axis. This is the 4th axis added to our machining process. In most cases, the workpiece will rotate around the B-axis for cutting. Since the spindle on this CNC machine can swing from side to side, the spindle can approach the workpiece from many different angles and effectively machine three effective machining surfaces for three-dimensional machining of cylindrical, curved, and radiused surfaces. This four-axis CNC machine tool can not only realize plane engraving, but also three-dimensional engraving of irregular workpieces. This kind of woodworking CNC machine tool is suitable for the processing of ordinary workpieces, three-dimensional workpieces, complex workpieces and irregular shapes.

Features of Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit

The CNC router comes with a linear tool changer, and a carousel tool change option is available to meet your specific needs.
The ATC CNC Router can automatically utilize over 8 tools during the engraving process, enhancing efficiency and reducing labor requirements.

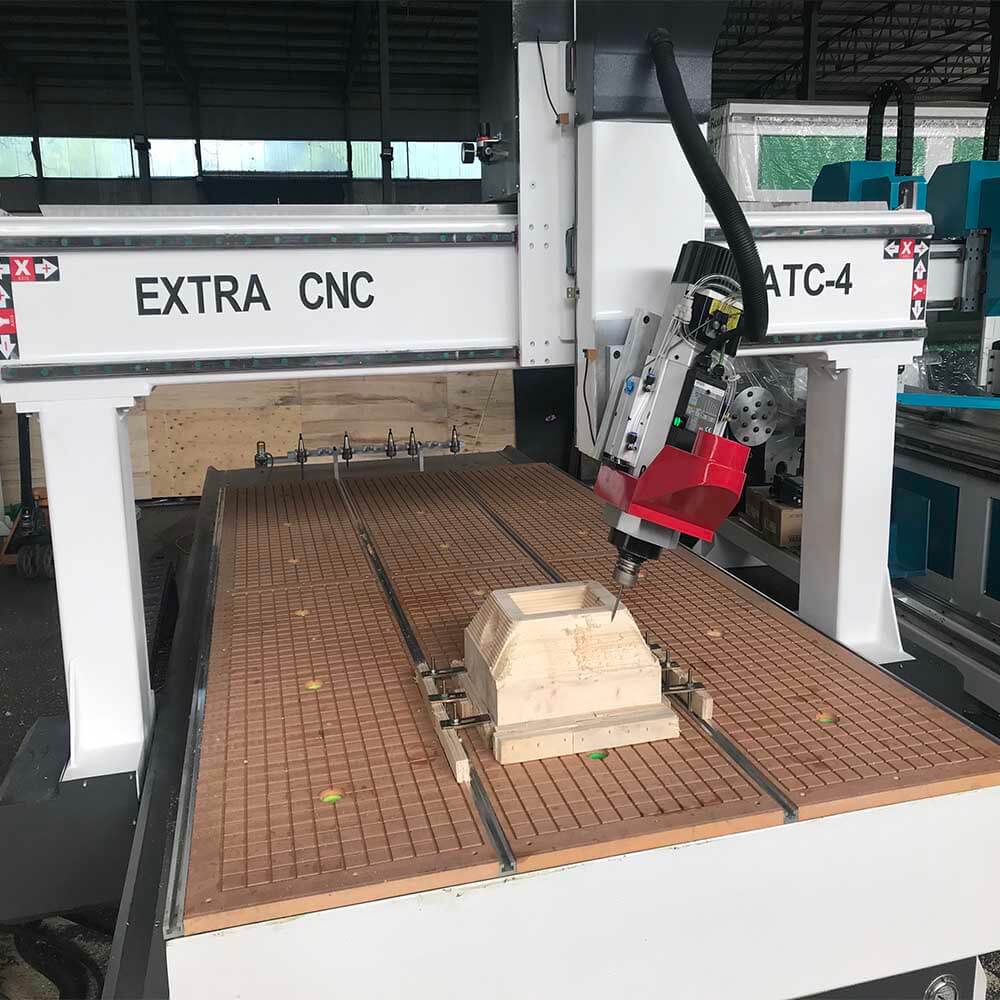

The 4 Axis CNC Router is capable of carving 3D shapes and molds, with a spindle that can pivot 180 degrees.
All components of the CNC machine are sourced from reputable brands.
The robust frame is designed for durability and reliability, as all our frames undergo annealing and various heat treatment processes.

Specification of Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit

Descriptions Parameters
Model ET-1530ATC-4
Working area 1500*3000*600mm
Control system Taiwan SYNTEC60W-E Controller
Working Voltage 380V or 220V
Spindle Italy 9.0kw air cooling spindle, spindle rotation in 180 degrees, 18000RPM
Spindle speed 0-18000rpm
Inverter 7.5kw Fuling inverter
Motor and Driver 750w Japan YASKAWA servo motor and driver
Table surface T-slot and vacuum working table
Structure Heavy Duty 8mm Steel machine bed; 10mm Moving Steel Gantry
Lubrication system Manual lubrication system
Transmission X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y axis: Taiwan hiwin square guide rails with 20mm
Vacuum pump 7.5kw vacuum pump
Control box independent box
Software UG
weight 1800kg

Application of Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit

Wood Industry: This includes the production of wooden doors, cabinets, panels, office furniture, tables, chairs, speaker boxes, gaming cabinets, computer desks, sewing machines, wood crafts, gift boxes, and jewelry boxes.

Advertising Industry: In this sector, products include signage, logos, badges, display boards, meeting signs, billboard advertisements, sign creation, acrylic engraving and cutting, crystal letter crafting, and the production of various advertising material derivatives.

Mold Industry: This encompasses the creation of sculptures and molds from metals such as copper, aluminum, and iron, as well as molds made from artificial marble, sand, plastic sheets, PVC pipes, and other non-metallic materials.

Automotive Industry: This includes the manufacturing of custom parts, interior components, dashboards, and other vehicle accessories, along with prototyping and mold making for automotive applications.

Aerospace Industry: This sector involves the production of lightweight structural components, precision parts for aircraft, and custom fittings, ensuring adherence to stringent safety and performance standards.

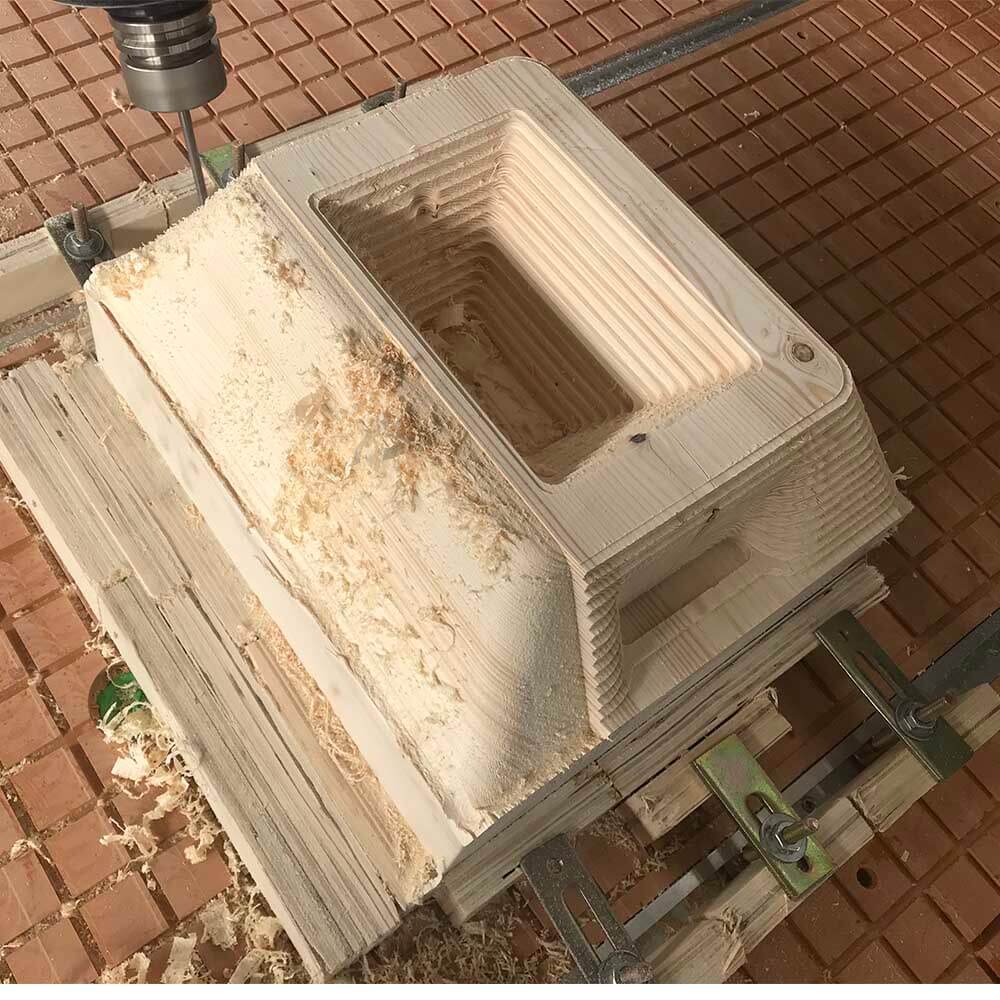

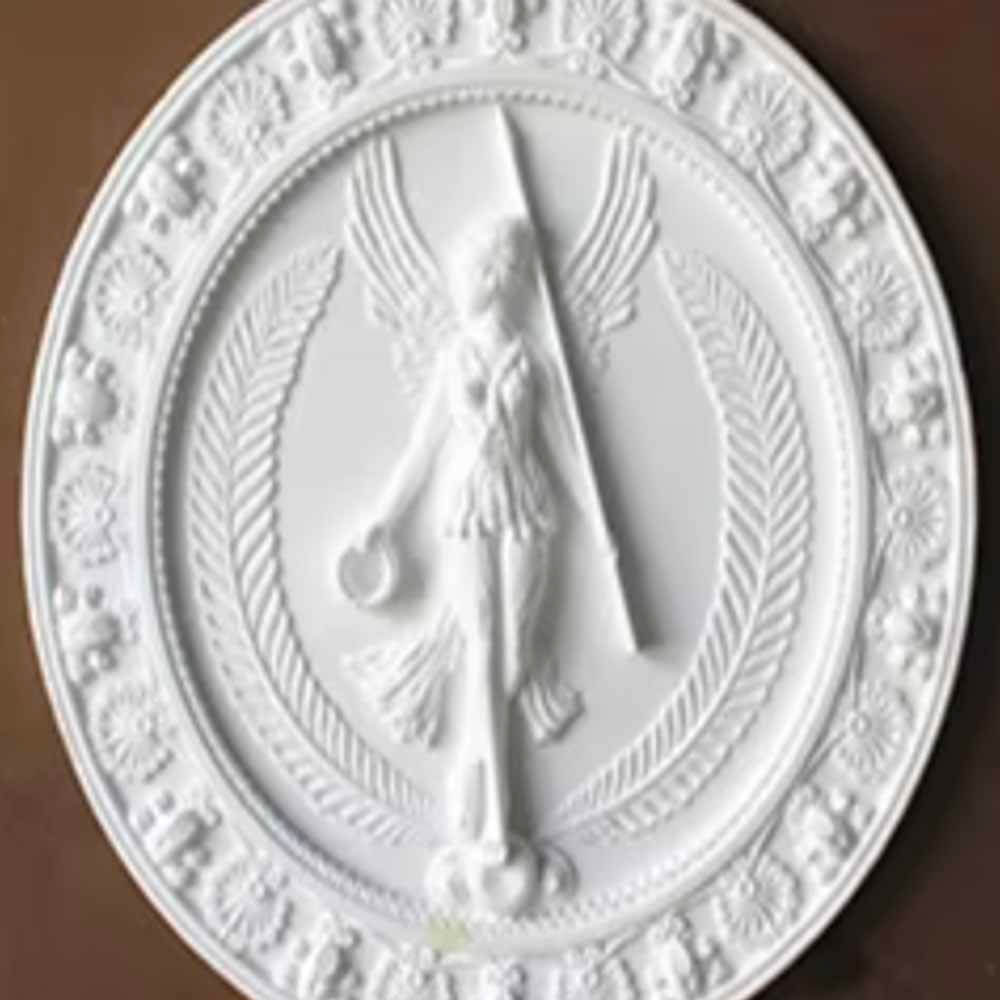

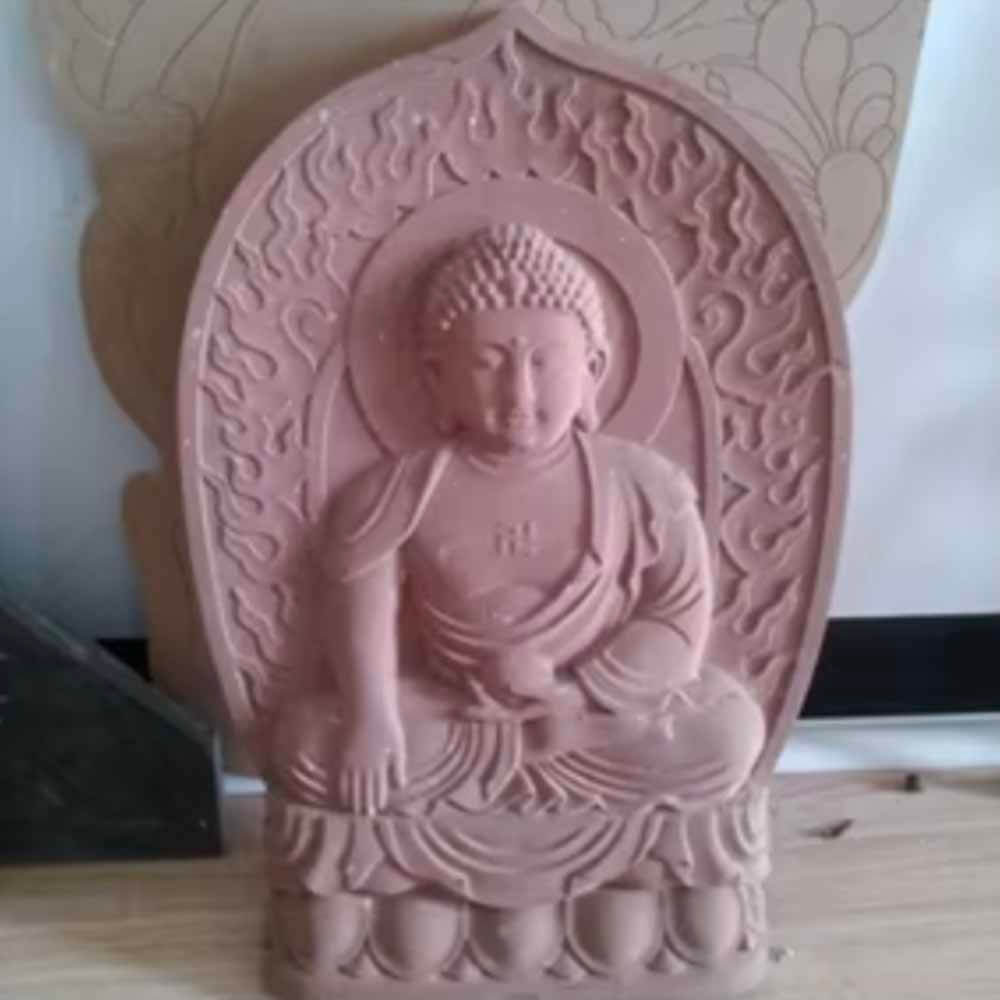

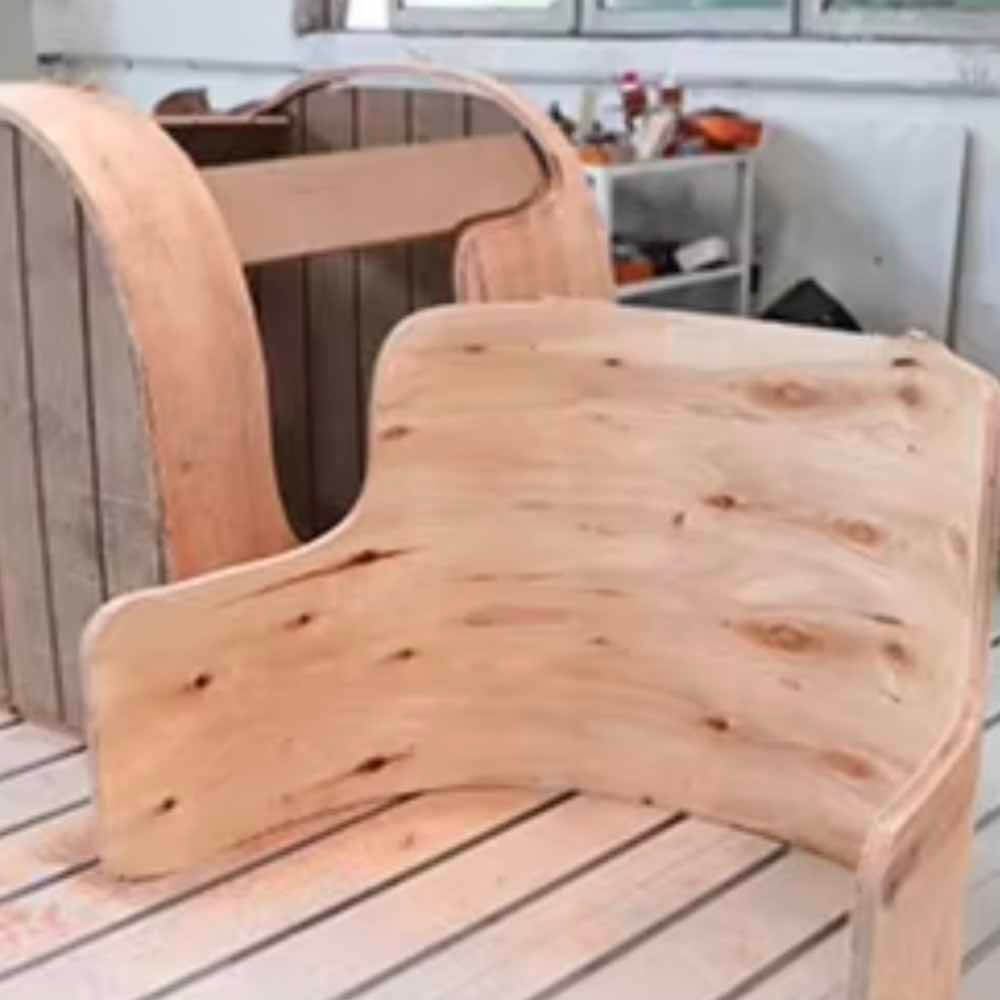

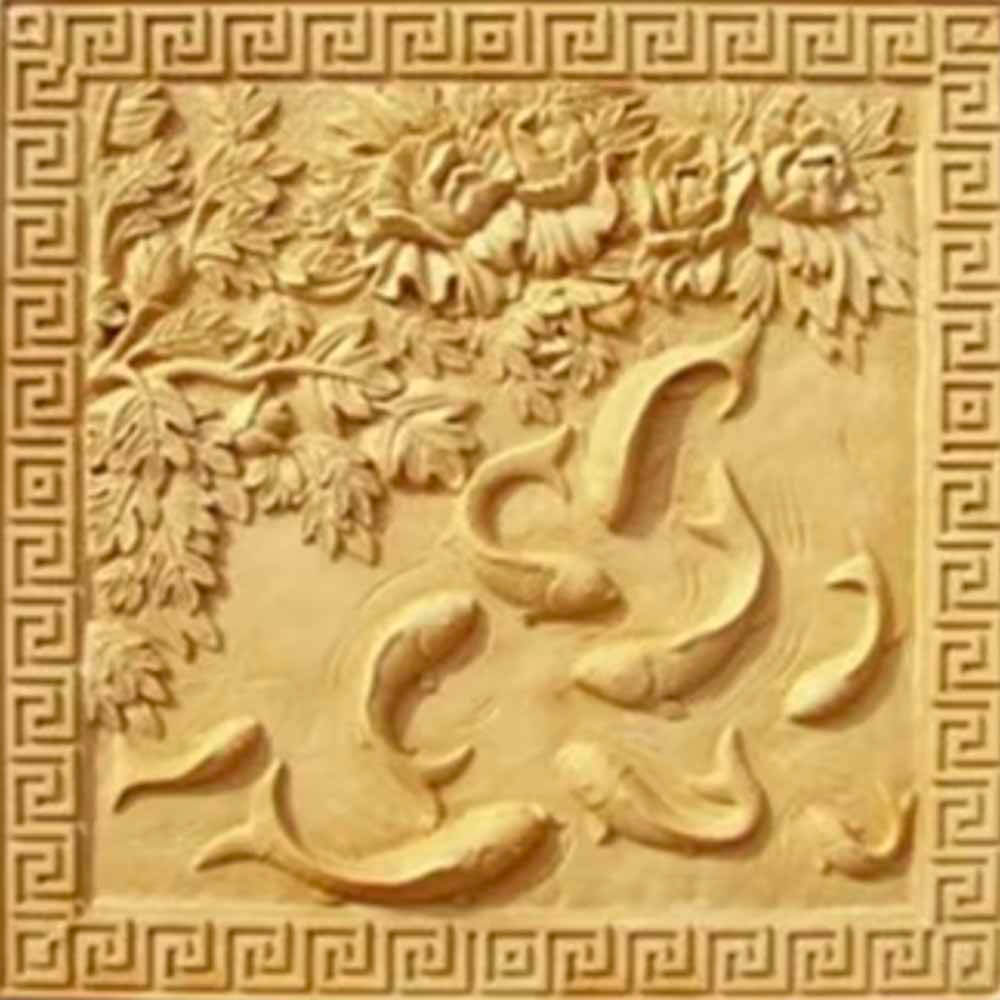

Samples of Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit

Get a Quote

This machine is specifically engineered for the processing of intricate 3D patterns on a variety of materials, including wood, MDF, and acrylic. Its advanced capabilities allow for the creation of detailed designs that meet the demands of complex projects. Additionally, the ATC HSD spindle enhances the efficiency of the operation by facilitating automatic processing, making it an excellent choice for users looking to streamline their workflow while maintaining high precision and quality in their finished products.

FAQ of Industrial 4 Axis CNC Wood Router with Linner ATC Spindle Kit

What materials can the 4 Axis CNC Wood Router process?

The router is designed to work with a variety of materials, including wood, MDF, acrylic, plastics, and even some soft metals.

How does the 4-axis capability enhance functionality?

The additional rotational axis enables the router to carve and engrave more complex 3D shapes and contours, offering greater versatility in design possibilities.

What software is compatible with this CNC router?

The router is compatible with various CAD/CAM software programs, such as AutoCAD, Fusion 360, and ArtCAM, facilitating easy design and toolpath creation.

What is the advantage of using a Linear ATC Spindle Kit?

The Linear ATC (Automatic Tool Change) spindle allows for quick and efficient tool changes, reducing downtime and improving overall productivity during multi-tool operations.

Is the CNC router suitable for mass production?

Yes, the router's automatic tool changing capability and high precision make it ideal for mass production runs, ensuring consistent quality across multiple pieces.

What maintenance is required for the router?

Regular maintenance includes cleaning, lubrication of moving parts, checking the alignment of the spindle and axes, and ensuring that all electrical connections are secure.
