Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner
$8000-$99000
(Average Rating: 4.9/5 from 258 Reviews)
- Model: ET-1325-ATC
- Workig size: 1300*2500*200mm
- Category: ATC CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Lifetime Expert Support Online, Available Anywhere Around the World
- Payment Options: Online via T/T, PayPal, Trade Assurance; Offline via T/T, LC, or Credit Card
- Machine Warranty: 12 Months Limited, Optional Extended Warranty Available for Main Components
Introduction of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner
The Entry-Level 4×8 ATC CNC Router with Automatic Tool Changer is an ideal solution for beginners and small workshops seeking a user-friendly yet powerful CNC machine. With its 4×8 working area, robust steel frame, and precision linear rails, it delivers stable, accurate, and reliable performance for a wide range of applications, from furniture components and signage to custom decor and prototypes. The 9KW water-cooled spindle ensures efficient cutting with minimal noise and long service life, while the ATC system allows seamless tool changes to save time and improve productivity. Designed for easy operation, the standalone DSP control system works without a PC, and the machine is compatible with popular CAD/CAM software such as Type3, ArtCAM, and Ucancam, making it perfect for beginners to turn creative designs into professional-quality results.
Features of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner
- Sturdy Steel Welded Frame: Built with heavy-duty steel and reinforced welding, the machine frame is vibration-tested to ensure long-term stability, high precision, and durability during extended operation.
- Powerful 9KW ATC Spindle: High-performance automatic tool change (ATC) spindle with 9KW power, providing efficient cutting, excellent cooling, low noise, and long service life.
- High-Precision Linear Rails: Taiwan Hiwin linear guide rails offer superior accuracy, minimal wear, and smooth high-speed movement while reducing the machine’s drive power requirements. Supports loads from multiple directions simultaneously.
- Reliable Stepper Motors and Drivers: Leadshine stepper motors with matched drivers ensure stable motion, prevent lost steps, and guarantee precise positioning.

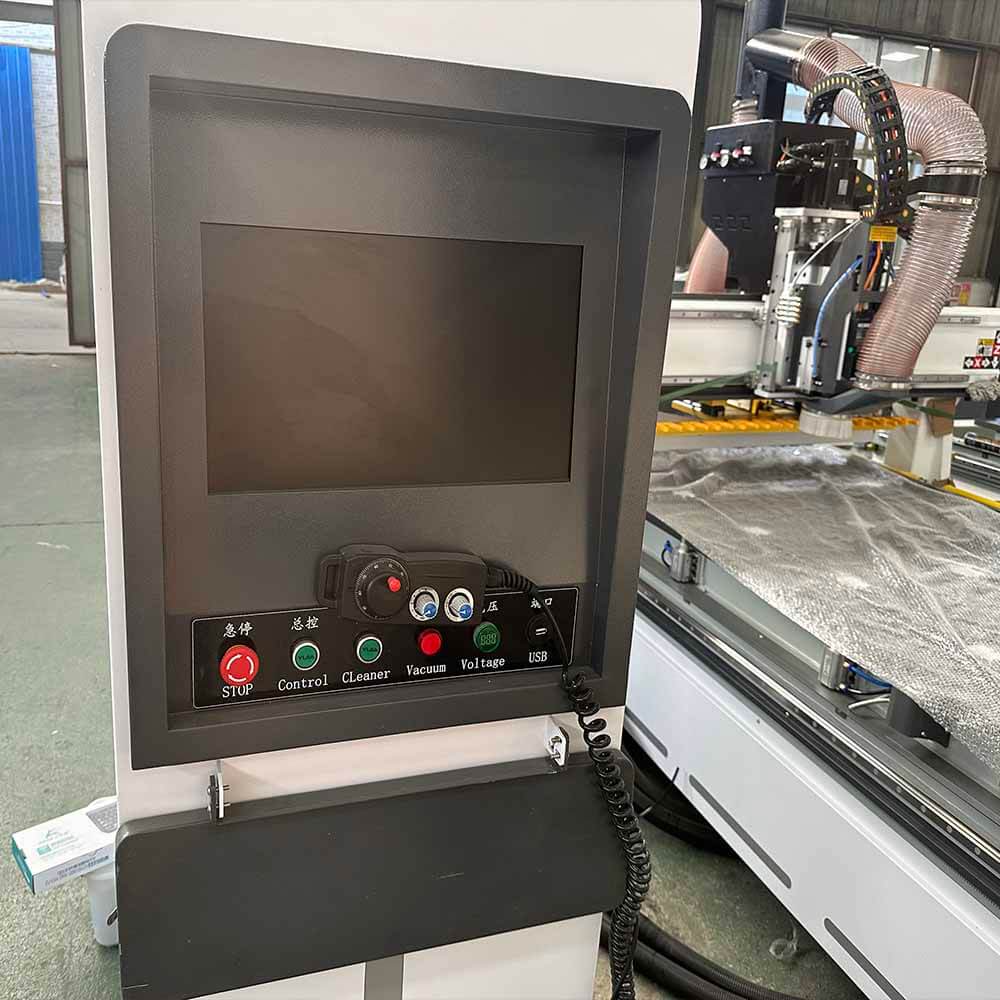

- User-Friendly DSP Control System: Operates independently without a computer, making it easy for beginners to learn and use.
- Automatic Tool Changer (ATC) System: Fast and convenient tool changes improve machining efficiency, especially for multi-step cutting and complex designs.
- Software Compatibility: Fully compatible with popular CAD/CAM software including Type3, ArtCAM, Castmate, and Ucancam for flexible design and production.
- Optional Rotary Axis: Can be equipped with a 4th rotary axis for processing cylindrical or irregular round materials.
Specification of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner
| Description | ET-1325-ATC | ET-1530-ATC | ET-2030-ATC | ET-2040-ATC | Custom Options |
|---|---|---|---|---|---|
| Working Area | 1300 × 2500 mm | 1500 × 3000 mm | 2000 × 3000 mm | 2000 × 4000 mm | Customized sizes available |
| Positioning Accuracy | ±0.03 mm | ±0.03 mm | ±0.03 mm | ±0.03 mm | Customized |

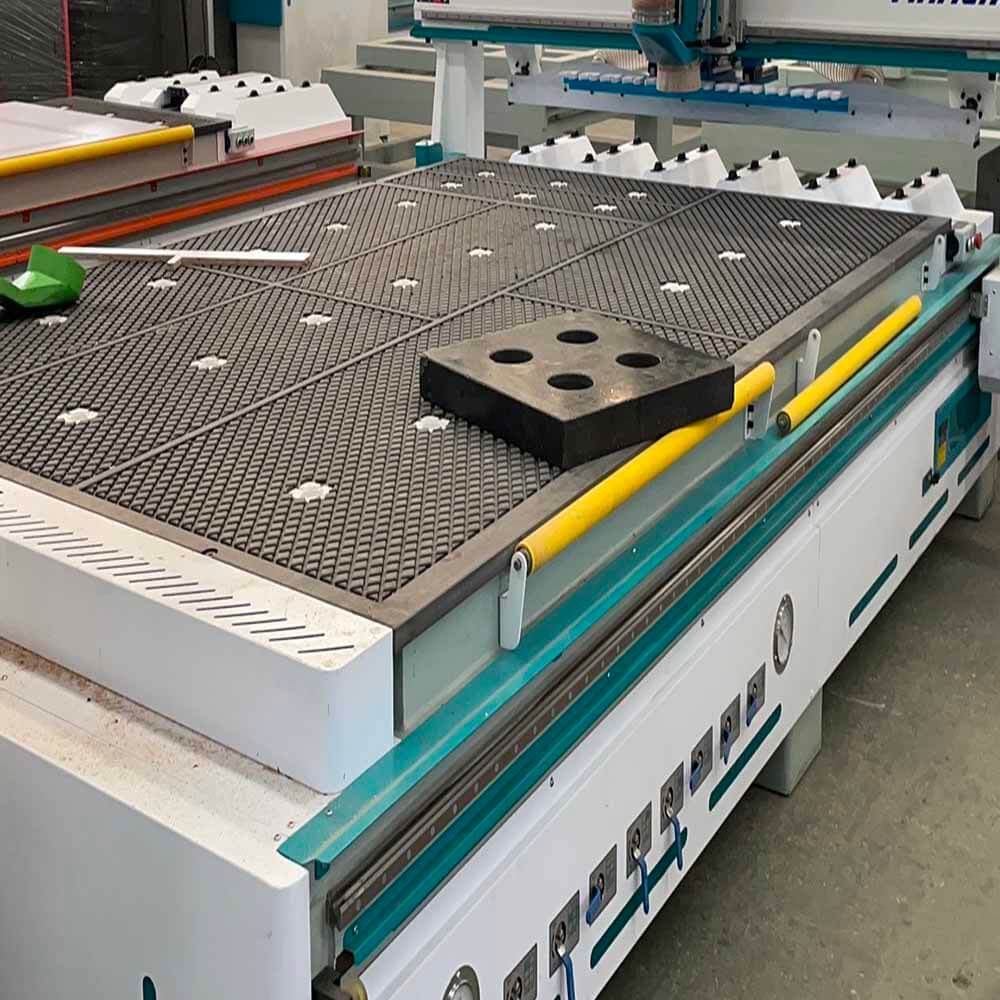

| Table Surface | Vacuum & T-slot combination (or T-slot table / vacuum table) | Same | Same | Same | Customizable |
| Frame | Heavy-duty steel square tube, 10 mm thick | Same | Same | Same | Customizable |
| X/Y Axis Structure | 1.5M helical gear & rack transmission with Taiwan TRV linear rails | Same | Same | Same | Customized |
| Z Axis Structure | Taiwan TBI ball screw & Taiwan TRV linear rail | Same | Same | Same | Customized |
| Max. Rapid Travel Rate | 80,000 mm/min | Same | Same | Same | Customized |
| Max. Working Speed | 45,000 mm/min | Same | Same | Same | Customized |
| Spindle Power | 9KW ATC spindle | Same | Same | Same | Customized |
| Spindle Speed | 0–24,000 RPM | Same | Same | Same | Customized |
| Drive Motors | Leadshine 1KW servo motor & driver (Yaskawa or Delta optional) | Same | Same | Same | Customized |
| Working Voltage | Customized | Same | Same | Same | Customized |
| Command Language | G-code | Same | Same | Same | Customized |
| Operating System | Taiwan LNC high-level controller | Same | Same | Same | Customized |
| Computer Interface | USB | Same | Same | Same | Customized |
| Collet | ISO30 | Same | Same | Same | Customized |
| Inverter | Taiwan EVO 11KW | Same | Same | Same | Customized |
| Software Compatibility | Type3 / ArtCAM / Ucancam | Same | Same | Same | Customized |

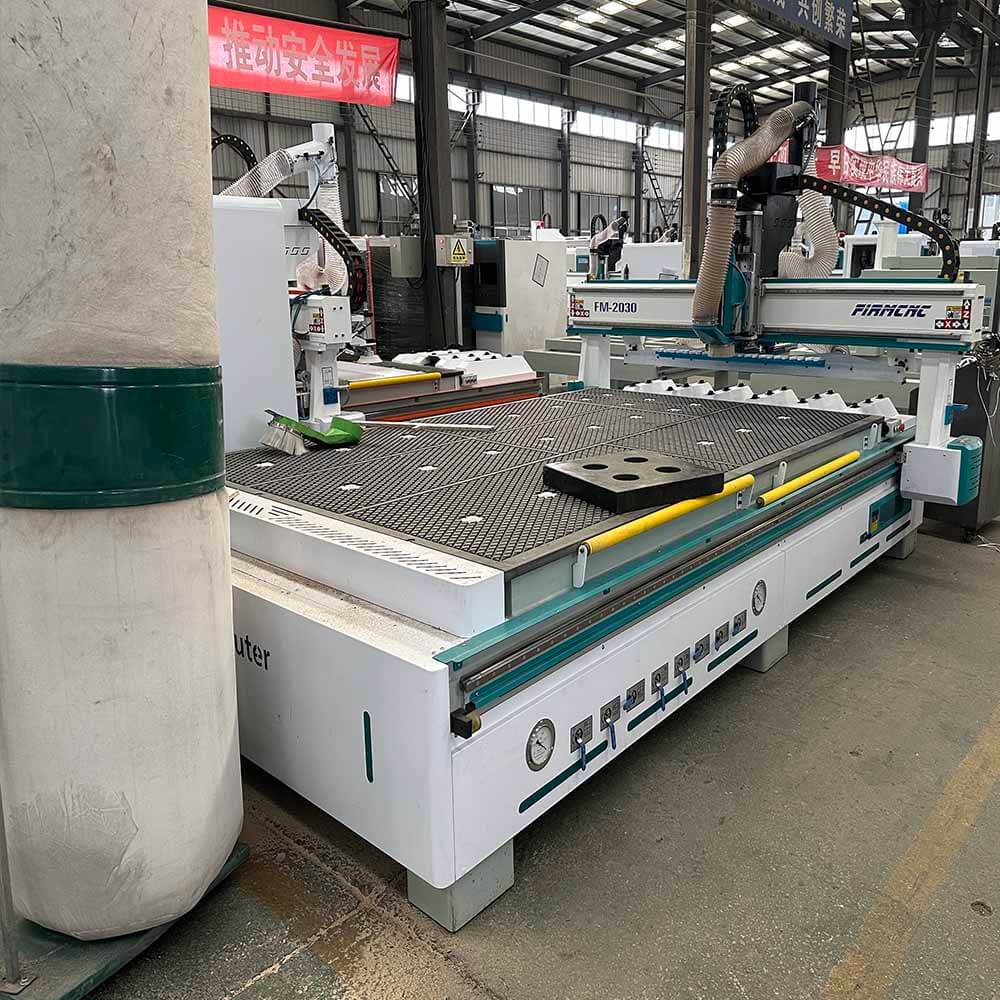

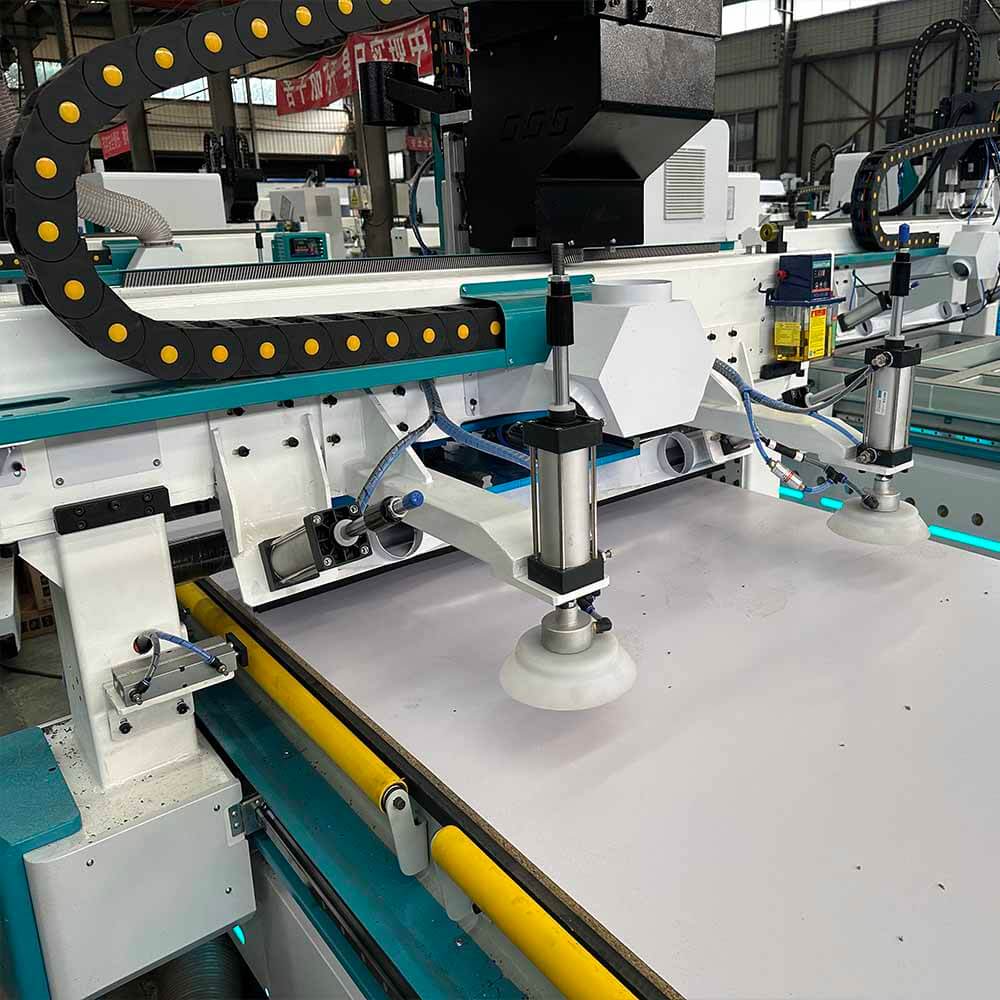

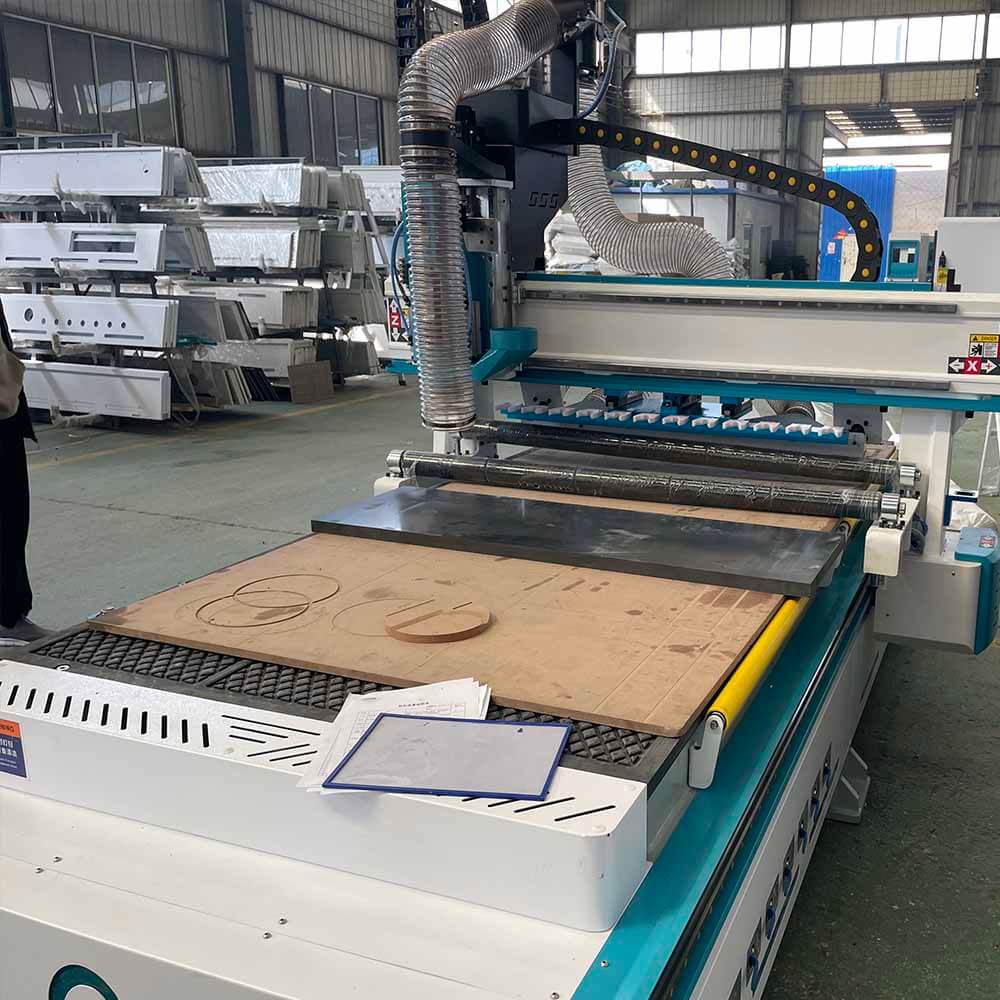

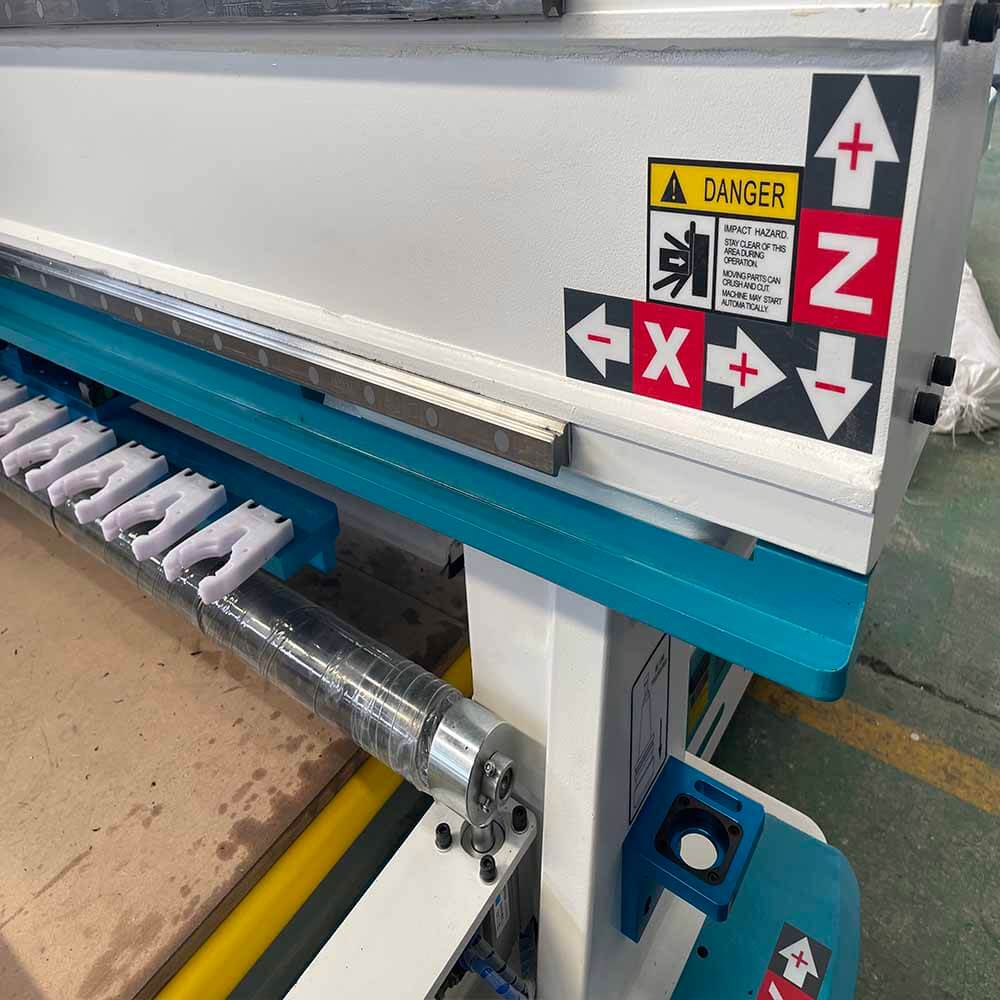

Showcase of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner
Application of Entry Level 4×8 ATC CNC Router with Tool Changer for Beginner
Wood CNC Router Machine Suitable Materials:
Capable of working with all types of wood, various plastics, composites, plywood, MDF, polystyrene, wax, PVC, and many other materials. It can also handle metals like copper, brass, aluminum, as well as glass, ceramic tiles, and more.
Wood CNC Router Machine Application Areas:

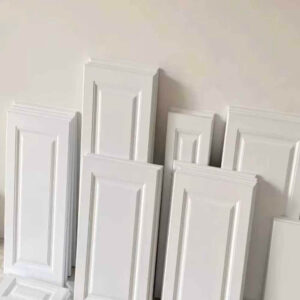

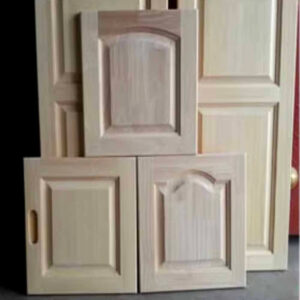

- Production of furniture components such as chairs, cabinets, doors, and decorative panels

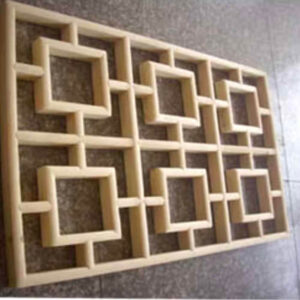

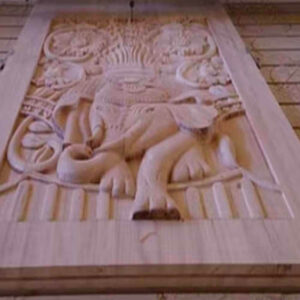

- Interior decoration and custom furniture finishing

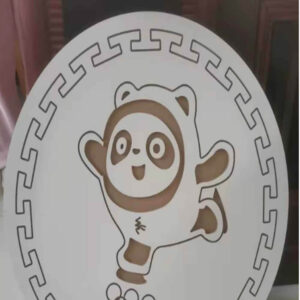

- Advertising industry, including 3D signage, logos, and promotional elements
- Creating master models, molds, stamps, dies, and other precision components
