2025 Best 5 Axis CNC Router Machine for Sale
$35000-$125000
(Average Rating: 4.9/5 from 128 Reviews)
- Model: ET-1212-5AXIS
- Workig size: 1200*1200*600mm
- Category: 5 Axis CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Lifetime Expert Support Online, Available Anywhere Around the World
- Payment Options: Online via T/T, PayPal, Trade Assurance; Offline via T/T, LC, or Credit Card
- Machine Warranty: 12 Months Limited, Optional Extended Warranty Available for Main Components
Introduction of 2025 Best 5 Axis CNC Router Machine for Sale
The 2025 Best 5-Axis CNC Router Machine offers top-tier performance for professionals seeking precision, power, and versatility. Designed to handle a wide variety of materials — from wood, plastics, and composites to soft metals — it delivers smooth, multi-angle machining thanks to its advanced 5-axis control, robust spindle, and large working area. Whether you’re producing furniture, molds, signage, or complex 3D components, this machine combines high-speed cutting, accurate positioning, and reliable repeatability to meet demanding production standards. With optional configurations and durable construction, it’s the ideal solution for manufacturers, carpenters, and fabricators looking for a dependable, high-performance CNC router for sale.
Features of 2025 Best 5 Axis CNC Router Machine for Sale
The machine is capable of machining a broad range of materials, including foam, EPS, wood, plastics, acrylic, PVC, composite boards, stone, and light metals. It performs multi-directional operations such as grooving, chamfering, drilling, slot cutting, and precision milling, allowing efficient completion of complex processing tasks from multiple angles.
Built with a reinforced heavy-duty frame, the structure is precision-finished using a CNC gantry machining process, providing exceptional strength, high rigidity, and long-term operational stability. The system is equipped with an advanced DSP-based control platform, featuring an independent power supply, fast computation speed, and strong resistance to electrical interference, ensuring smooth operation, reliable control performance, and enhanced machining efficiency across diverse applications.
Specification of 2025 Best 5 Axis CNC Router Machine for Sale
| Item | Specification |
|---|---|
| Model | ET-1212 5 Axis |
| X / Y Axis Travel | 1200 × 1200 mm |
| Optional Working Sizes | 1300 × 2500 mm / 1500 × 3000 mm / 2100 × 3000 mm |
| Z Axis Travel | 200 mm |
| Optional Z Stroke | 300 / 400 / 500 / 600 mm |
| Spindle Type | 10 kW DEMAS 5-Axis ATC Spindle |
| Spindle Interface | HSK F63 |
| Collet Type | ER32 |
| Inverter | 15 kW Delta Inverter (B Series) |
| Drilling Unit | 5 + 4 Vertical Drill Bank (Taiwan / Italy optional) |
| Tool Magazine | Carousel-type Automatic Tool Changer |
| Optional ATC | Linear Type Tool Changer |
| Servo System | 1.3 kW YASKAWA Servo Motors & Drives (Japan) |
| Optional Servo | 1.5 kW Leadshine Servo System |
| Reducer | SHIMPO Precision Reducer (Japan) |
| Machine Structure | Heavy-duty steel body with quenching heat treatment |
| Worktable | Aluminum T-slot table with PVC protection |
| Positioning Cylinders | 5 pcs (X ×2, Y ×3) |
| Linear Guide Rails | Taiwan Linear Guides (Y: 35 mm / X & Z: 30 mm) |
| Transmission | Taiwan TBI Ball Screw 3510 |
| Lubrication System | Automatic centralized lubrication system (1.5 L) |
| Tool Calibration | Automatic tool length measurement sensor |
| Control Command | G-Code & M-Code |
| Rapid Travel Speed | Up to 80 m/min |
| Working Speed | 0–25 m/min |
| Working Air Pressure | 0.6 MPa |
| Power Supply Options | 220V 1-Phase / 3-Phase, 50/60 H |

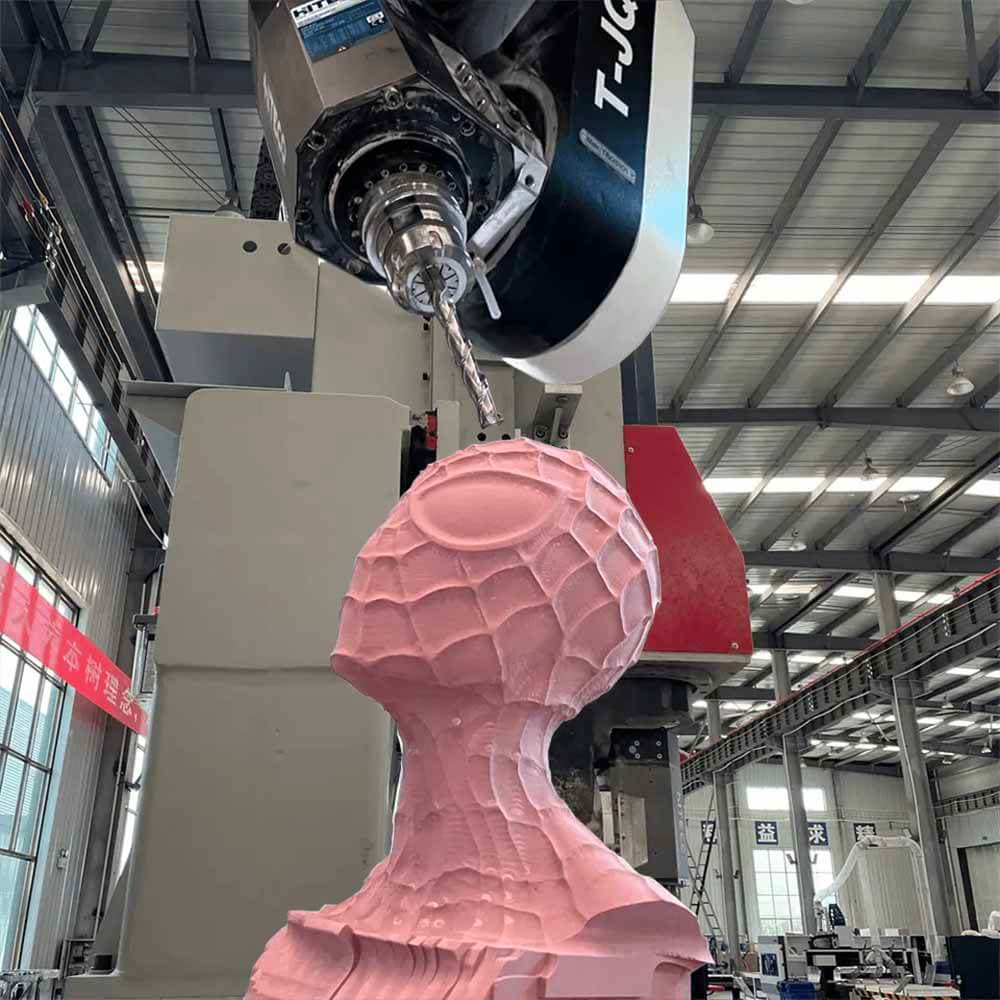

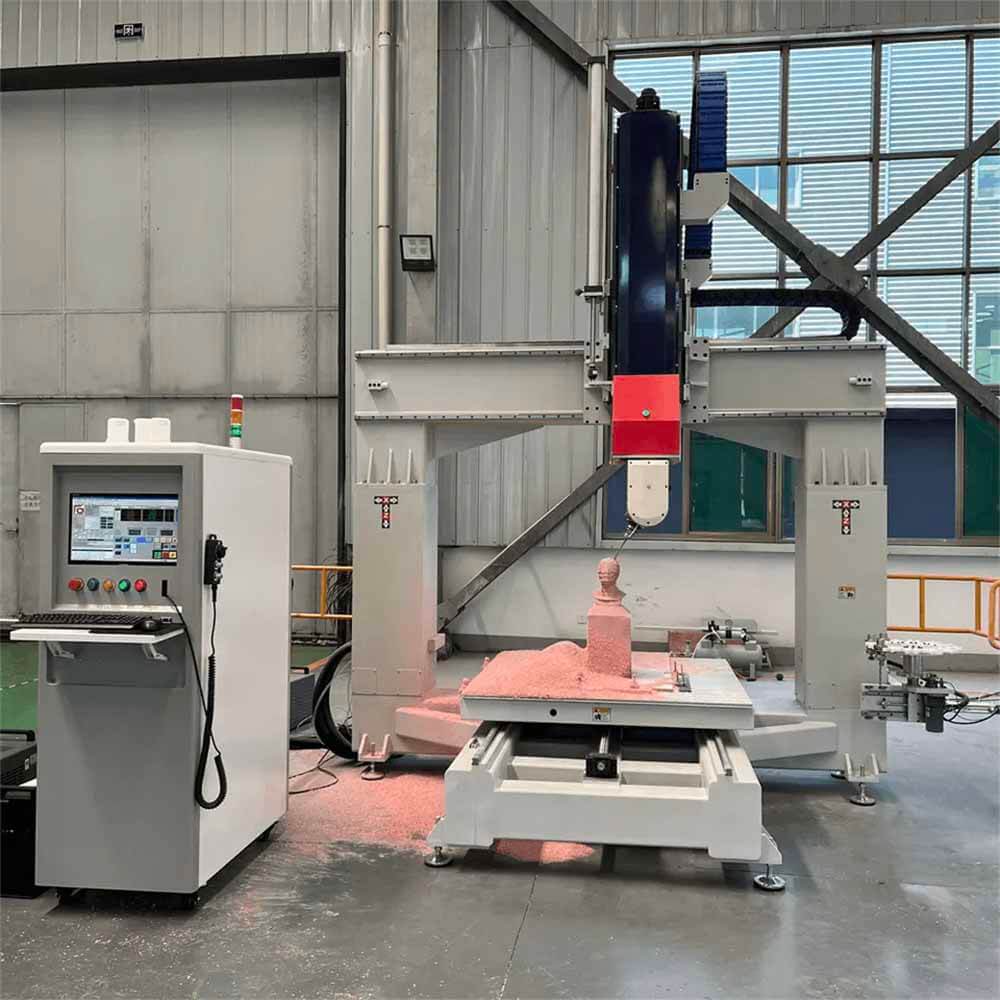

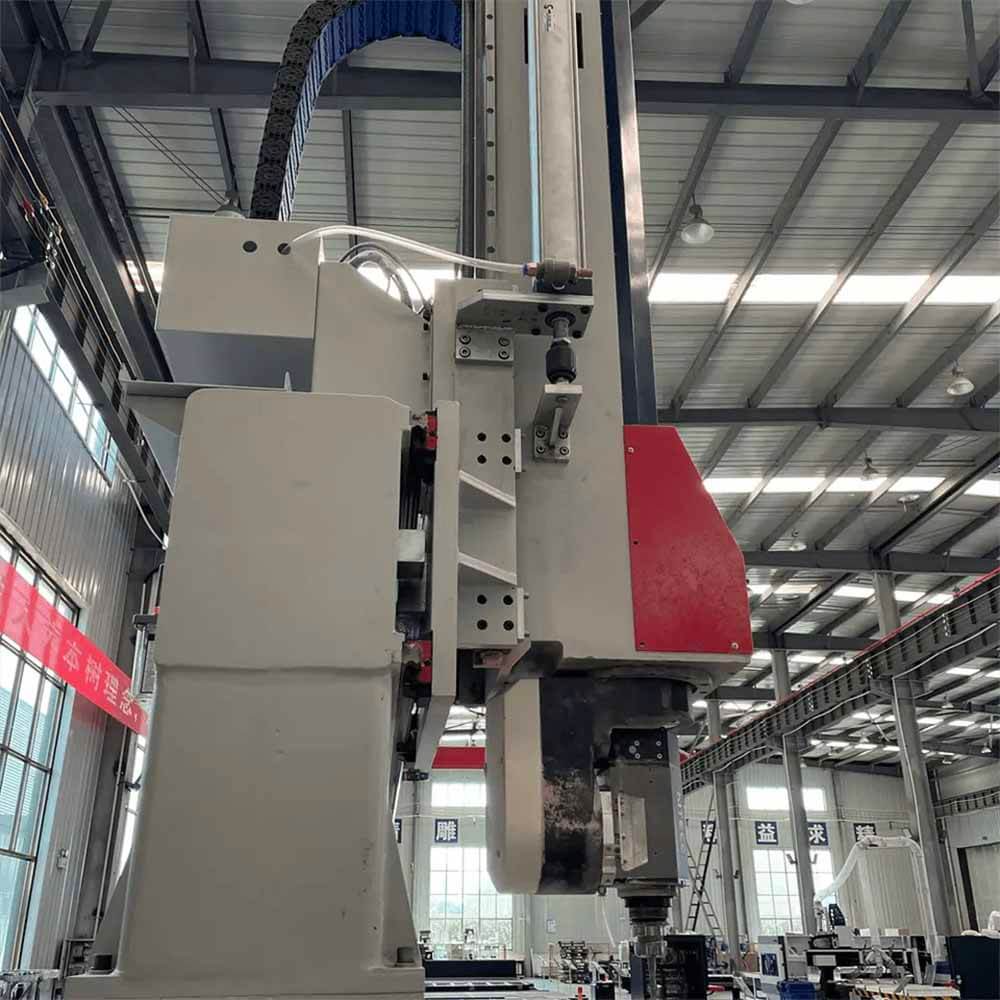

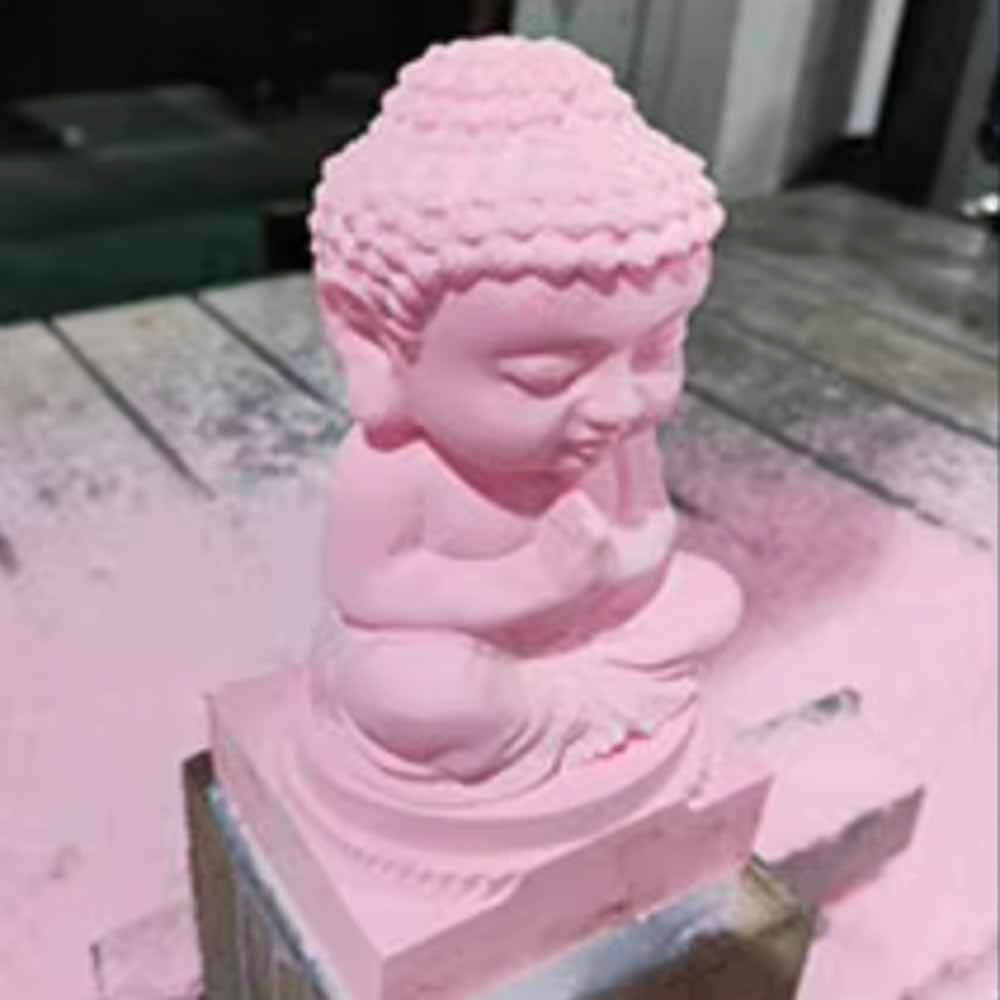

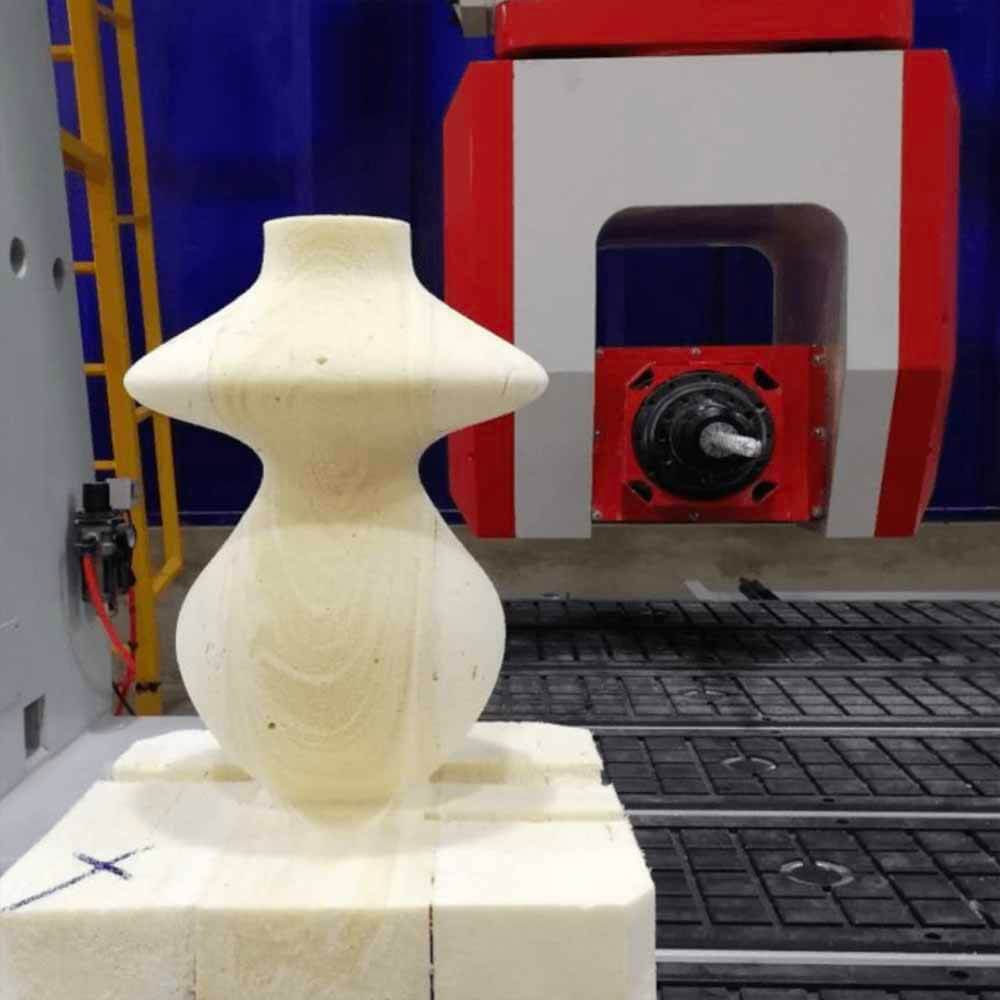

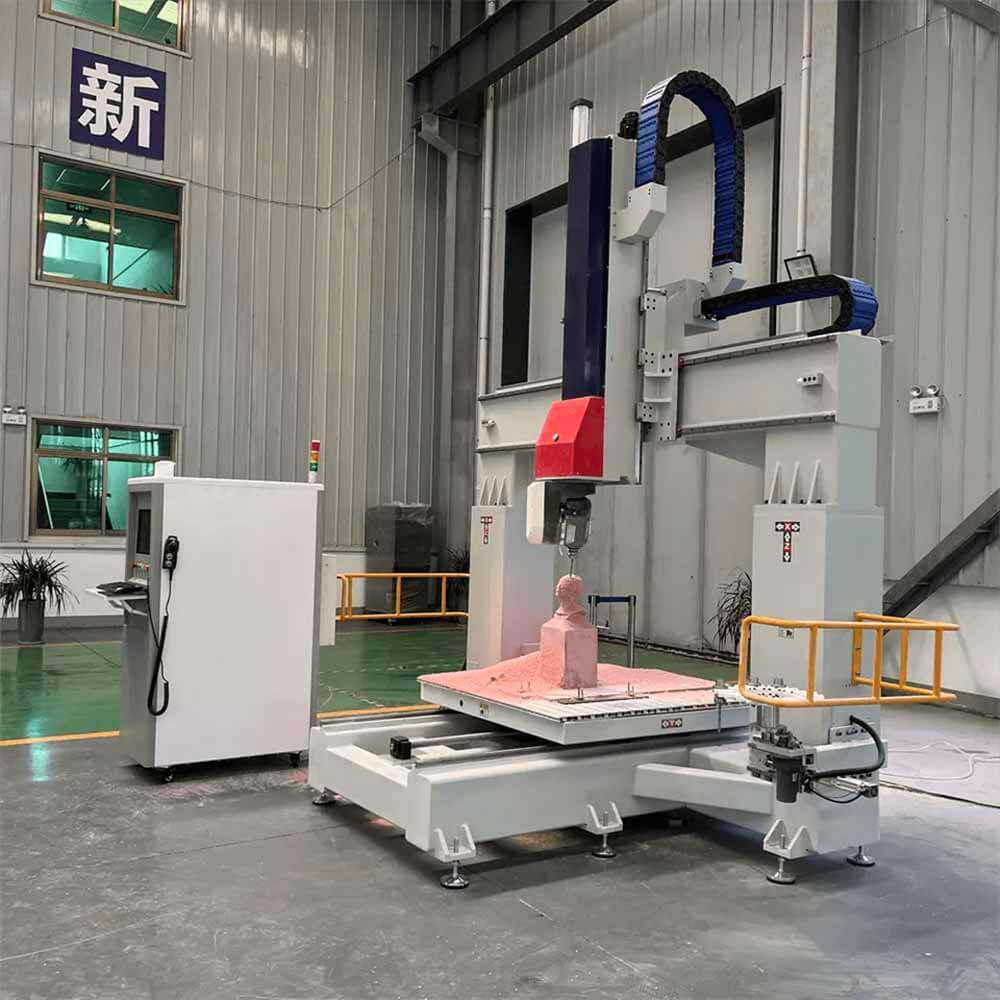

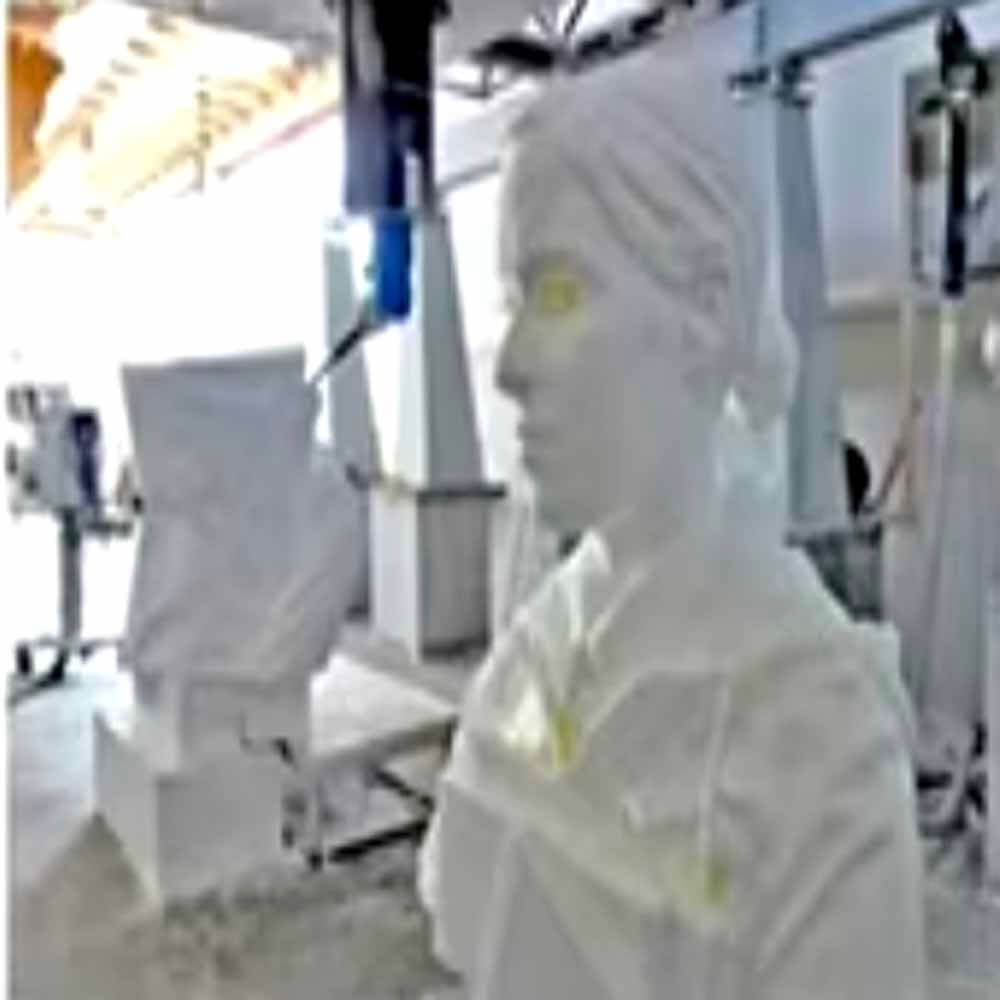

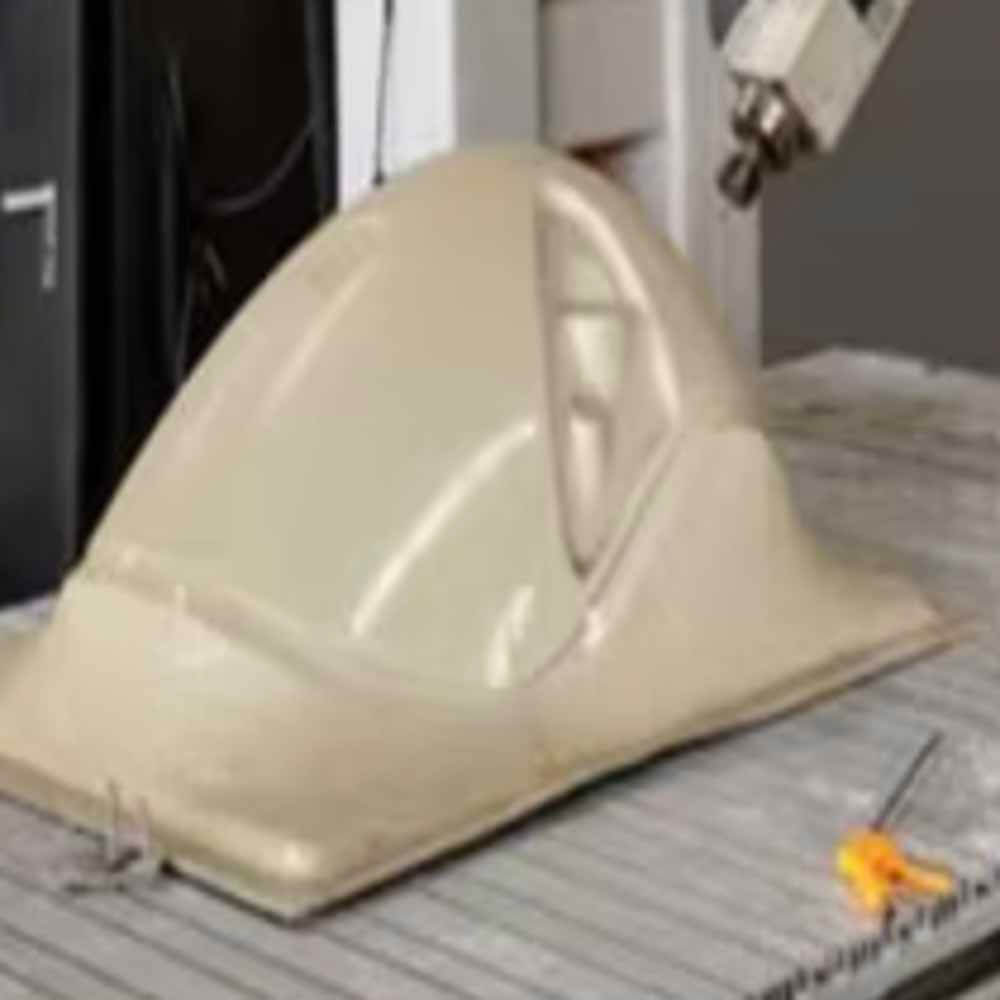

Product Showcase of 2025 Best 5 Axis CNC Router Machine for Sale
Application of 2025 Best 5 Axis CNC Router Machine for Sale
The 2025 Best 5 Axis CNC Router Machine is widely applied across industries that require complex, high-precision, multi-angle machining. It is ideal for woodworking such as furniture manufacturing, wooden doors, stair components, and artistic carvings; mold and die making including foam molds, automotive molds, boat molds, aerospace molds, and large composite molds; and advertising and signage for processing acrylic, PVC, and composite panels. The machine is also well suited for industrial machining of plastics, resin boards, fiberglass, carbon fiber, aluminum, and other light metals, as well as 3D sculpture and prototype production. Its ability to complete cutting, milling, drilling, chamfering, and 3D surface machining in a single setup makes it a versatile solution for modern manufacturing, prototyping, and custom production environments.
