4×8 Linear ATC CNC Wood Router for Furniture Making on Sale
$45000-$125000
(Average Rating: 4.9/5 from 128 Reviews)
- Model: ET-1325-ATC
- Workig size: 1300*2500*200mm
- Category: ATC CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Lifetime Expert Support Online, Available Anywhere Around the World
- Payment Options: Online via T/T, PayPal, Trade Assurance; Offline via T/T, LC, or Credit Card
- Machine Warranty: 12 Months Limited, Optional Extended Warranty Available for Main Components
Introduction of 4×8 Linear ATC CNC Wood Router for Furniture Making on Sale
The 4×8 Linear ATC CNC Wood Router is a high-performance woodworking machine designed specifically for furniture manufacturing and large panel processing. Featuring a linear automatic tool changer, it enables rapid and precise tool switching, significantly improving production efficiency while reducing manual setup time. With a spacious 4×8 ft working area, this CNC router can handle large wood panels, MDF, plywood, and composite materials, making it ideal for doors, cabinets, tabletops, and other custom furniture components. Built with a rigid welded steel frame, high-precision servo motors, and a reliable spindle system, it delivers stable operation, excellent accuracy, and long-term durability. Its integrated control system supports user-friendly operation, multiple CAD/CAM software, and advanced closed-loop motion control for precise and consistent results. This 4×8 Linear ATC CNC Wood Router is a cost-effective solution for workshops seeking high efficiency, precision, and automation in furniture production.
Features of 4×8 Linear ATC CNC Wood Router for Furniture Making on Sale

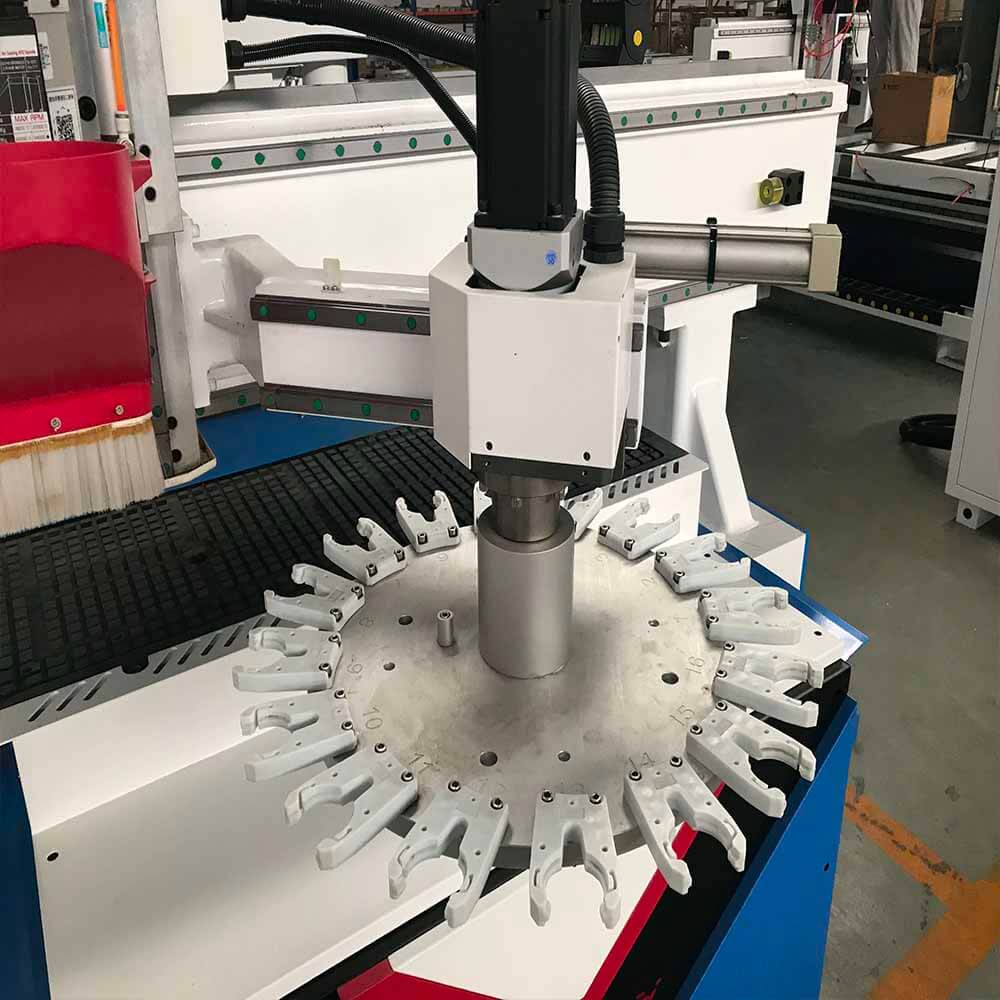

- Disc Tool Magazine – The tool disc is mounted beside the spindle for rapid automatic tool changes, accommodating up to 12 router bits. An optional 16-position magazine is available for greater flexibility.

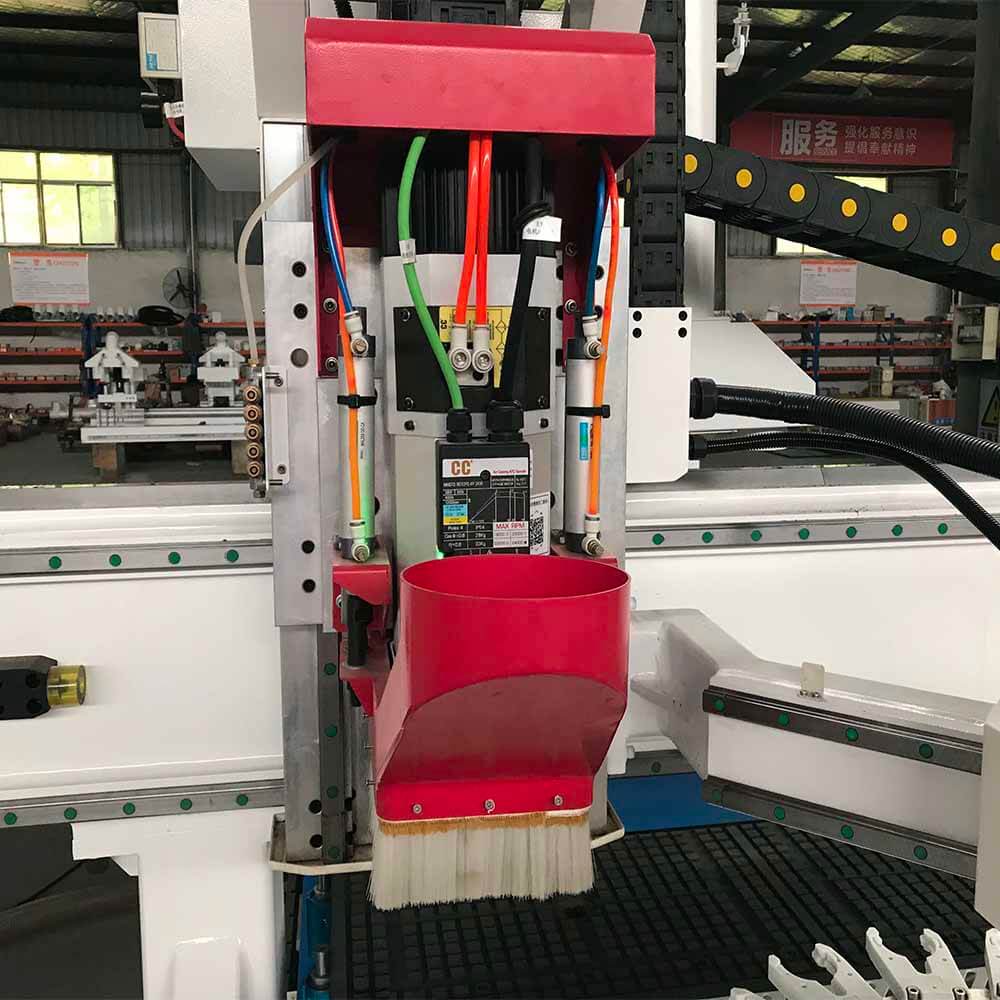

- • High-Performance Spindle – Equipped with a 9 kW Chinese-made automatic tool change electric spindle, offering an excellent balance of power, precision, and cost-efficiency.
- • Automated Material Handling – Designed with a pneumatic workpiece alignment system and an automatic pushing device to meet panel furniture production requirements, significantly reducing loading and unloading times and boosting overall productivity.
- • AC Closed-Loop Servo System – All axes are powered by Taiwan Delta AC servo motors and drivers, delivering fast, smooth, precise, and quiet motion. The system offers excellent acceleration and deceleration characteristics and operates in a true closed-loop configuration for consistent accuracy.
- • Advanced CNC Control – Utilizes the WEIHONG NK300 high-end control system, fully supporting automatic tool change and closed-loop operation. The servo system provides real-time positioning feedback to the CNC controller, which continuously compares and corrects deviations to ensure precise machining.
- • Enhanced Machine Rigidity – Optimized with an upright post structure replacing conventional side plates, ribbed beams, and a vibration-aged machine base. These design improvements significantly enhance stability and contribute to the CNC router’s high-precision performance.
Specification of 4×8 Linear ATC CNC Wood Router for Furniture Making on Sale
| Item | Specification |
|---|---|
| Model | ET-1325-ATC |
| Platform Size | 1300 × 2550 mm |
| Working Area (X × Y × Z) | 1300 × 2500 × 200 mm |
| Travelling Speed | 60–80 m/min |
| Working Speed | 20 m/min |
| Working Voltage | AC 380V / 3 Phase / 50Hz |
| Spindle Power | ChangChuan CC 9 kW automatic tool change spindle (24,000 RPM) |
| Tool Magazine | Carousel ATC with 12 tool positions |
| Machine Structure | De-stressing and finishing milling; single molding process; anti-jamming independent cabinet; high structural stability with minimal deformation |
| Drive System | Standard: Leadshine servo motor and driver Optional: Japan Yaskawa servo motor and driver |
| Transmission Components | Alloy hardened rack and pinion, TBI ball screw, Hiwin linear guides |
| Operating System | Standard: Taiwan Baoyuan system Optional: Taiwan Syntec Windows-based CNC system |
| Positioning Method | High-precision automatic positioning cylinders |
| Worktable Structure | Vacuum adsorption platform |
| Inverter | Standard: Delixi 11 kW high-precision inverter Optional: FULING, Delta brand |
| Lubrication System | Automatic centralized oil pump lubrication control |
| Safety System | Overtravel protection, electrical protection |
| Dust Collection | High-power automatic dust collector with hood |

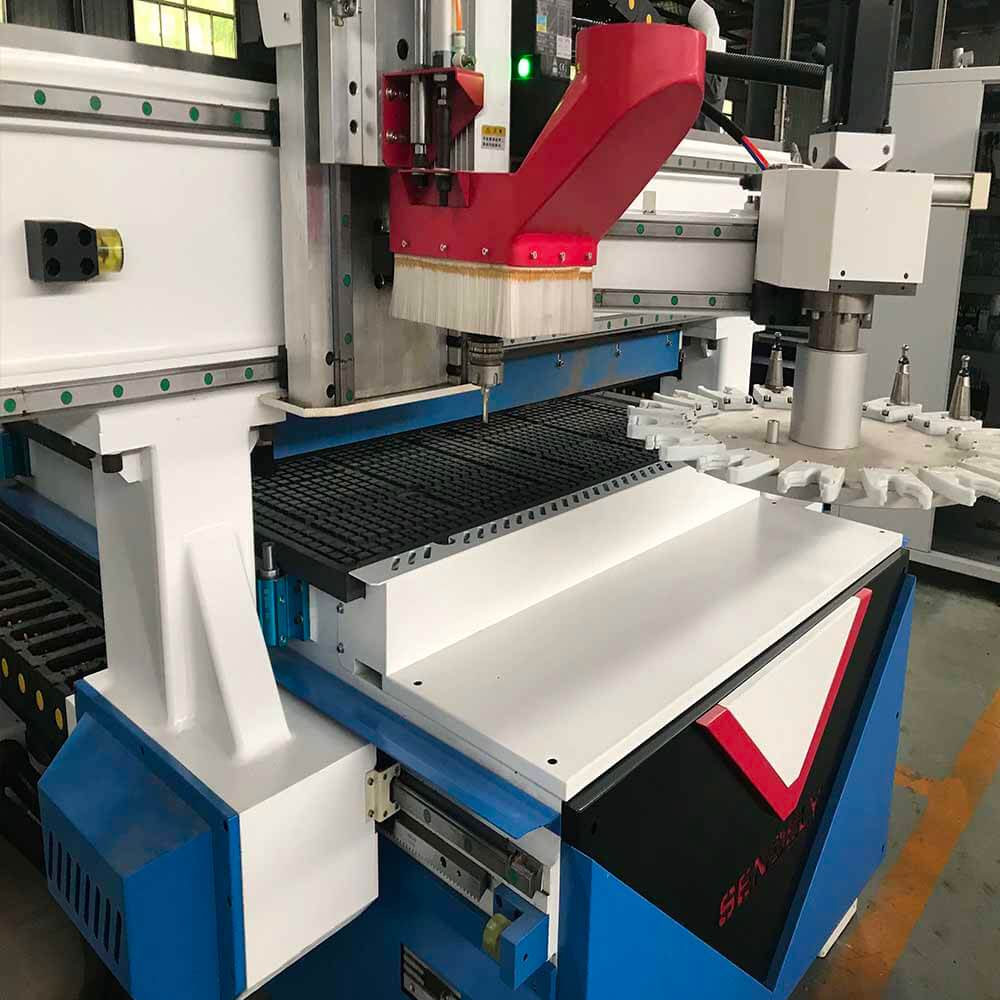

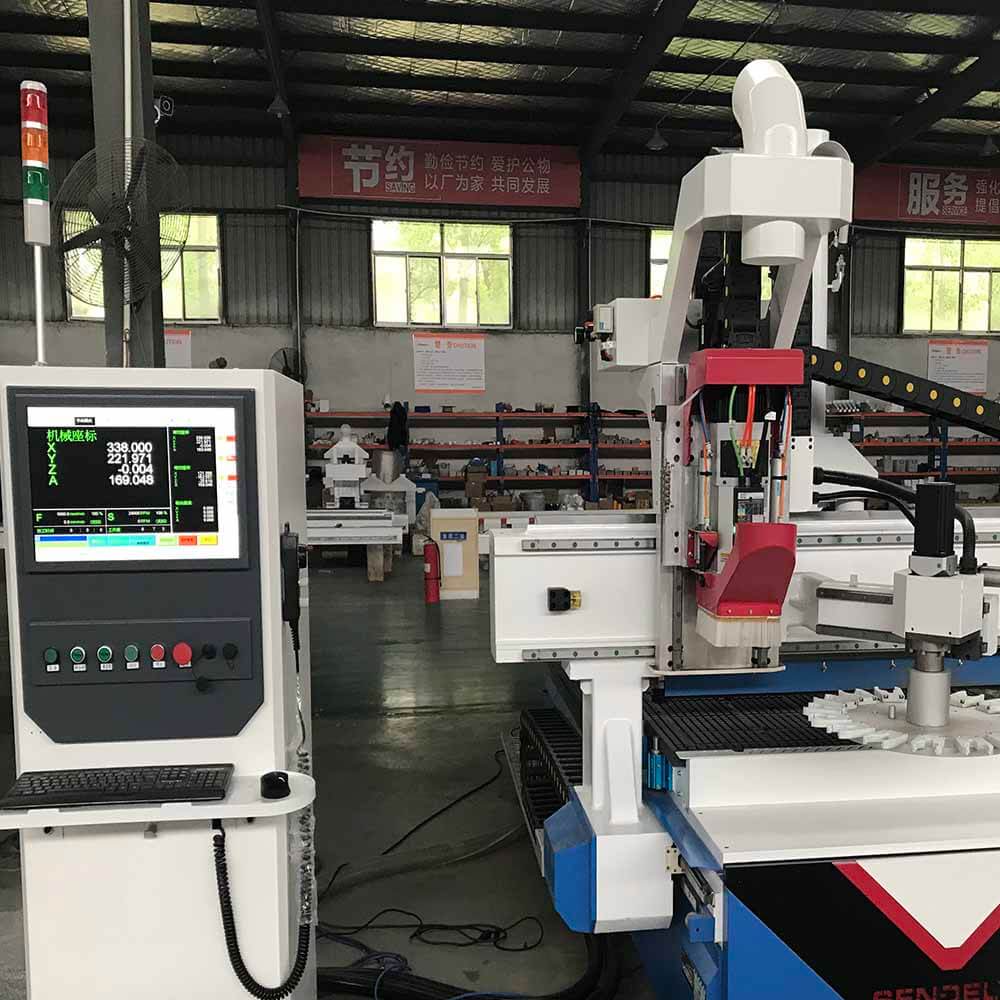

Product Showcase of 4×8 Linear ATC CNC Wood Router for Furniture Making on Sale
Application of 4×8 Linear ATC CNC Wood Router for Furniture Making on Sale
- Furniture Manufacturing
Ideal for producing wave panels, intricate patterns, antique-style furniture, wooden doors, screens, decorative frames, composite gates, cabinet doors, interior doors, sofa legs, headboards, and other custom wood components. - Advertising & Sign Industry
Perfect for making signage, logos, engraved letters, acrylic cutting, crystal lettering, blister molds, and a wide range of promotional and advertising material products. - Mold & Die Making
Suitable for crafting metal molds from copper, aluminum, iron, and other metals, as well as non-metal molds using artificial marble, sand, plastic sheets, PVC pipes, wooden boards, and other composite materials. - Musical Instrument Manufacturing
Used for precision cutting and engraving of guitar bodies, speaker boxes, piano components, and other custom musical instruments. - Decorative & Craft Production
Ideal for engraving, milling, and shaping materials such as acrylic, PVC, MDF, artificial stone, plastics, and soft metals for decorative items, crafts, and personalized gifts.
