Large 2060 Linear ATC Wood CNC Router Machine for Sale
$45000-$125000
(Average Rating: 4.9/5 from 128 Reviews)
- Model: ET-2060-ATC
- Workig size: 2000*6000*200mm
- Category: ATC CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Lifetime Expert Support Online, Available Anywhere Around the World
- Payment Options: Online via T/T, PayPal, Trade Assurance; Offline via T/T, LC, or Credit Card
- Machine Warranty: 12 Months Limited, Optional Extended Warranty Available for Main Components
Introduction of Large 2060 Linear ATC Wood CNC Router Machine for Sale
The Large 2060 Linear ATC Wood CNC Router is an industrial-grade machining solution designed for high-efficiency and precision woodworking. Featuring a large working area and a linear automatic tool changer, it enables fast, automatic tool switching to handle complex and multi-process jobs with minimal downtime. Built with a heavy-duty steel frame, high-performance ATC spindle, and reliable servo drive system, the machine delivers stable operation and accurate results over long production cycles. It is widely used for furniture, cabinet doors, wooden doors, decorative panels, and 3D carving applications, and can be fully customized to meet different production requirements.
Features of Large 2060 Linear ATC Wood CNC Router Machine for Sale
- Higher Productivity
The machine is equipped with a linear automatic tool changer, significantly improving machining efficiency. Tools are exchanged automatically during the engraving process, eliminating manual intervention. Compared with multi-head or multi-spindle CNC machines, which are limited to 2–4 fixed tools, this system offers greater flexibility and efficiency. - Fully Customizable Specifications
All machine parameters and configurations can be customized and manufactured according to your specific production needs and application requirements. - Versatile 3D CNC Wood Carving Solution
This 3D CNC wood carving machine integrates the functions of a 3-axis, 4-axis, and ATC CNC router into one system. The automatic carousel tool changer enables fast and accurate tool switching, making it ideal for long-duration operation, heavy-duty processing, and complex woodworking tasks such as furniture, doors, and cabinet manufacturing.
Specification of Large 2060 Linear ATC Wood CNC Router Machine for Sale
| Item | Specification |
|---|---|
| Model | ET-2060 ATC |
| Working Area (X × Y × Z) | 2000 × 6000 × 200 mm |
| Optional Working Area | 1500 × 3000 mm / 2100 × 3000 mm / 2100 × 4000 mm / Customized |
| Optional Z Travel | 300 / 400 / 500 / 600 mm |
| Control System | Taiwan SYNTEC or LNC controller |
| Power Supply | 380V, 3-phase, 50Hz (optional) |
| Spindle Power | 9 kW ATC air-cooled spindle |
| Tool Holder | ISO30, ER32 |
| Inverter | 11 kW |
| Servo Drive System | Japan YASKAWA AC servo drive (1 kW) with 850 W servo motor × 4 |
| Optional Servo System | Taiwan SYNTEC servo |
| Reducer | Japan SHIMPO precision reducer |
| Machine Structure | Heavy-duty steel frame with quenching heat treatment |
| Work Table | Aluminum T-slot & vacuum table |
| Positioning Cylinders | Optional 5 pcs (X × 2, Y × 3) |
| Linear Guideways | Taiwan high-precision linear guides |
| Transmission System | X/Y axis: Helical rack & pinion (Taiwan/Germany) |
| Z axis: Taiwan TBI precision ball screw | |
| Lubrication System | Automatic centralized lubrication, 1.5 L |
| Tool Measurement | Automatic tool sensor calibration |
| Cable System | Germany IGUS cables (CE, cUL certified) |
| Supported Software | G-code & M-code compatible |

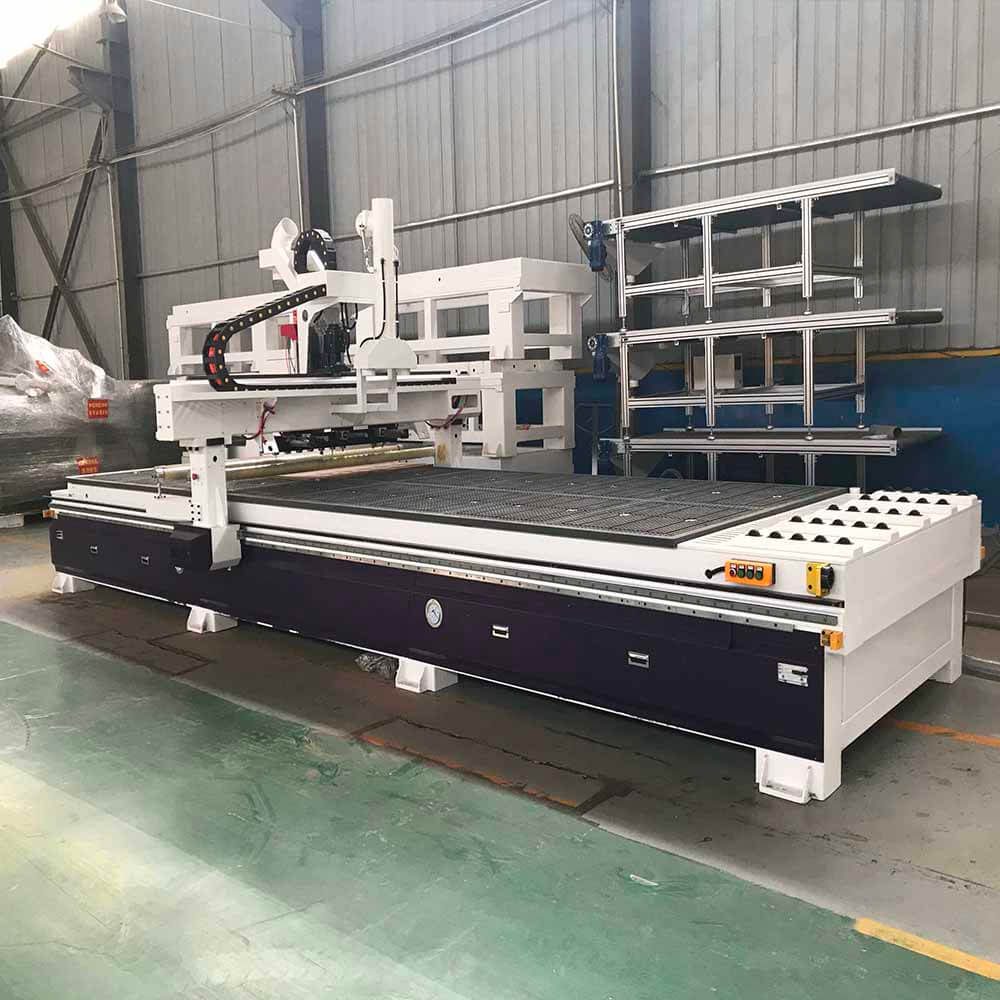

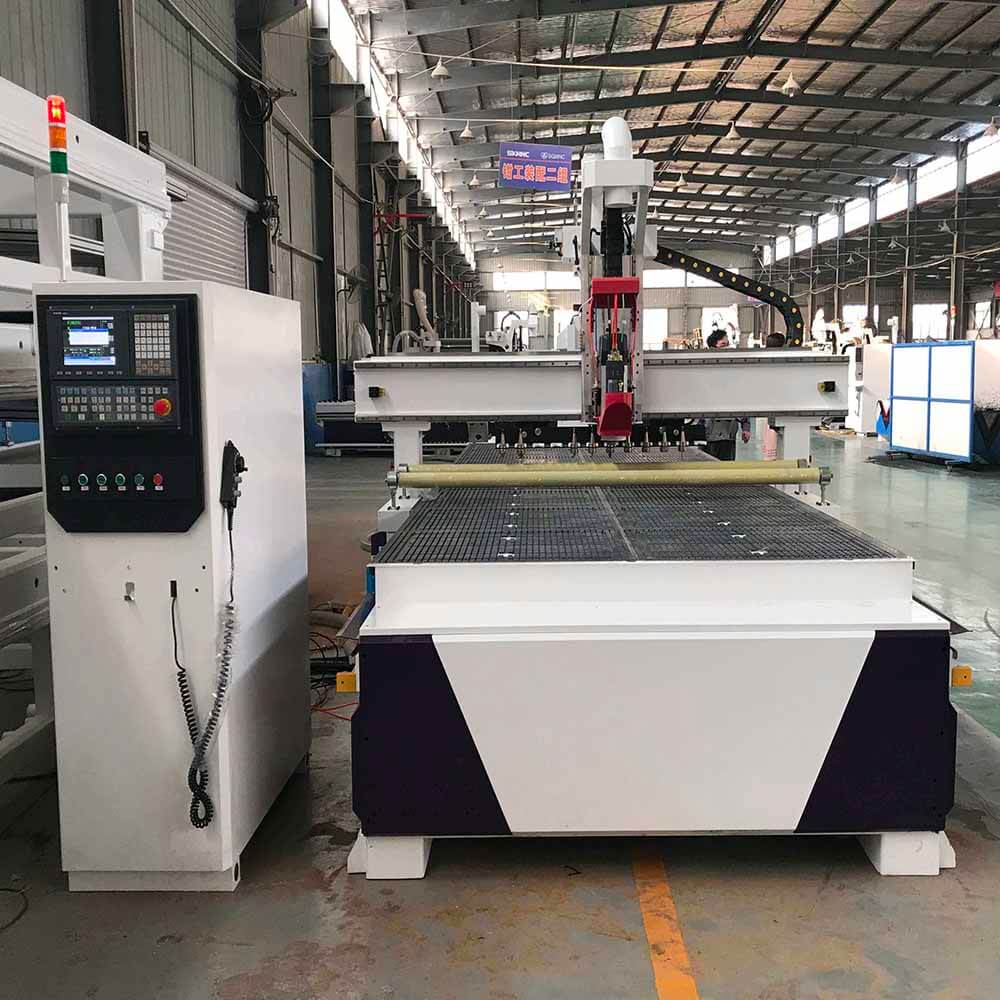

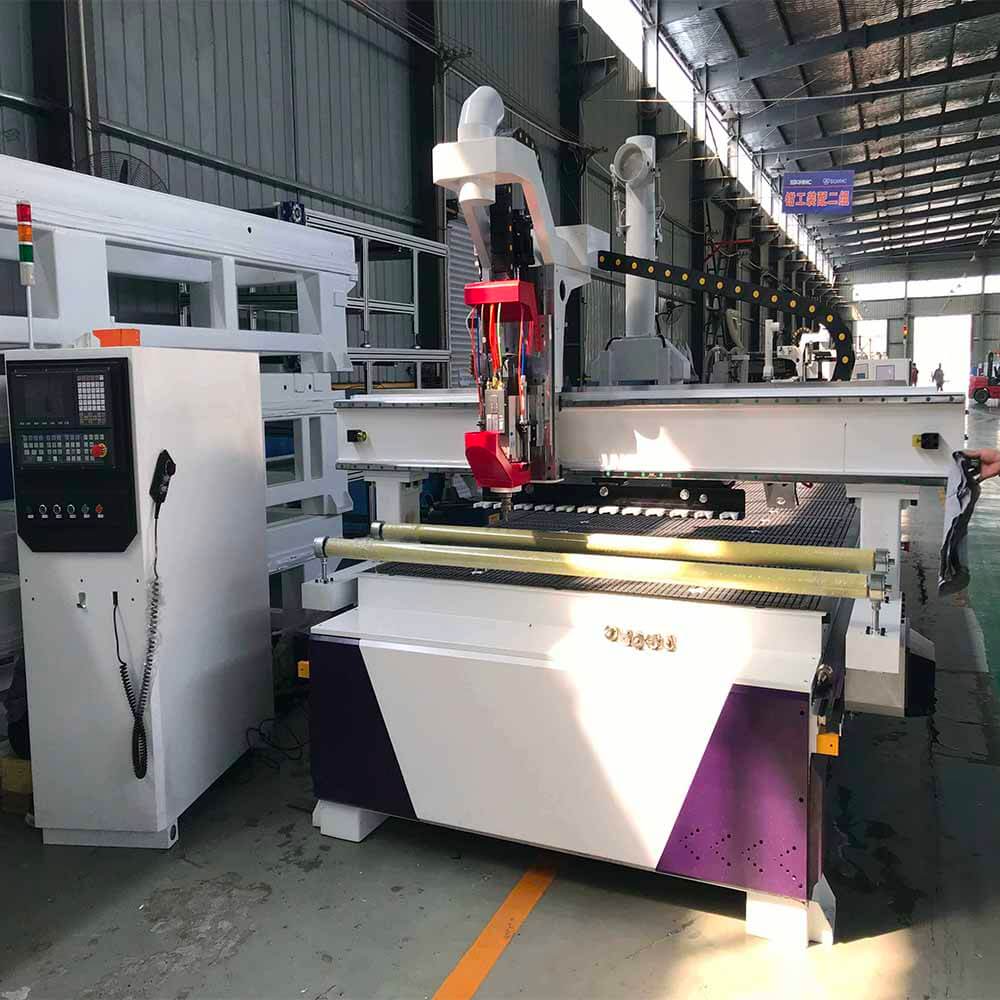

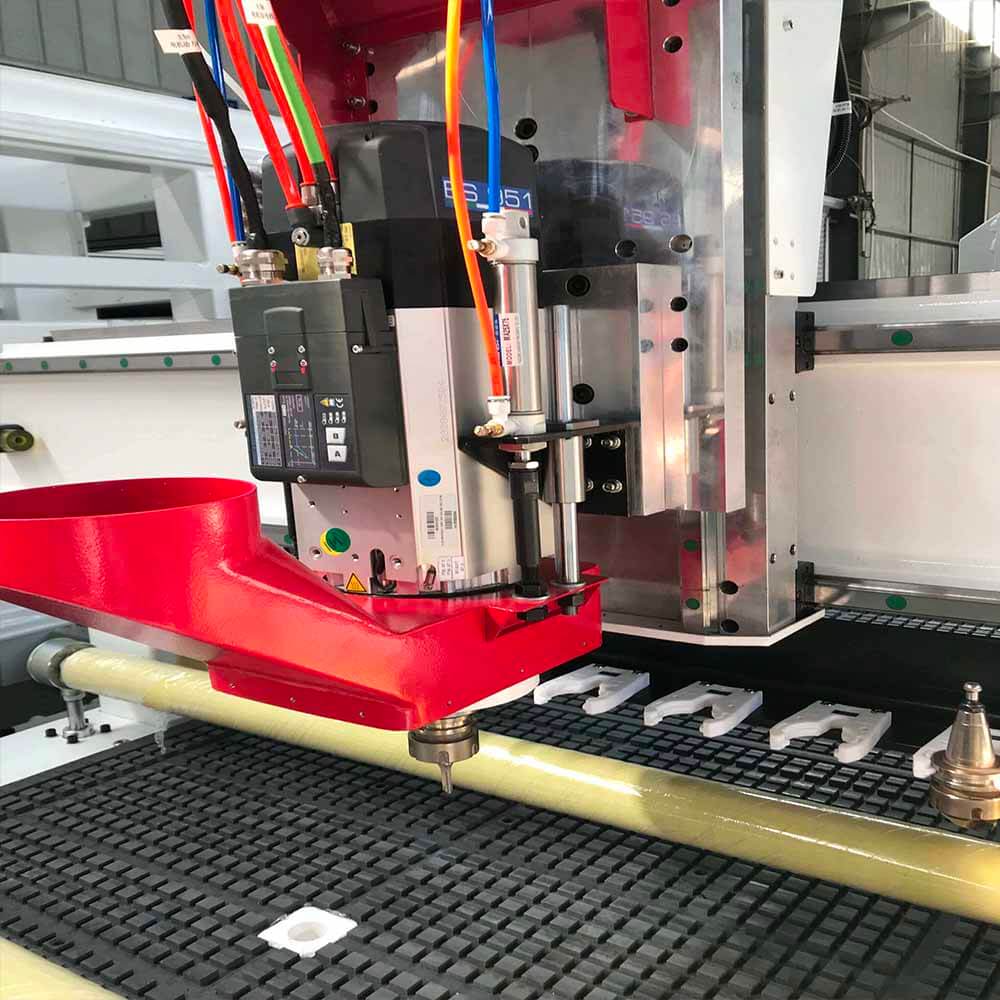

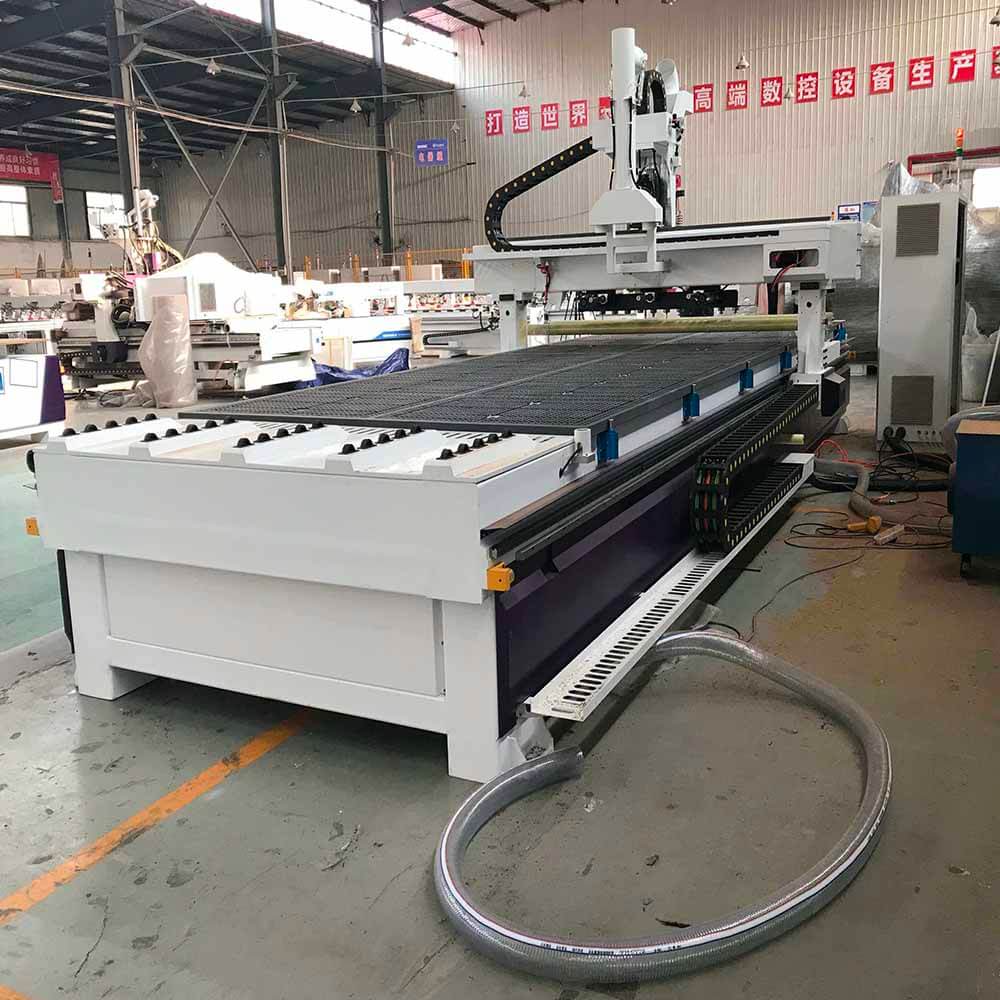

Product Showcase of Large 2060 Linear ATC Wood CNC Router Machine for Sale
Application of Large 2060 Linear ATC Wood CNC Router Machine for Sale
- Wood Furniture Manufacturing
Ideal for producing wave panels, detailed decorative patterns, antique-style furniture, wooden doors, screens, craft frames, composite gates, cabinet doors, interior doors, sofa legs, headboards, and other customized furniture components. - Advertising & Sign Making Industry
Widely used for advertising signage, logo and sign fabrication, acrylic engraving and cutting, crystal lettering, blister forming molds, and the processing of various advertising material products. - Mold & Die Industry
Suitable for machining metal molds made of copper, aluminum, iron, and similar materials, as well as non-metal molds such as artificial marble, plastic sheets, PVC panels, wooden boards, and other composite materials. - Artistic Carving & 3D Engraving
Capable of relief carving, three-dimensional engraving, and rotary engraving of cylindrical workpieces, delivering high precision and smooth surface finishes.
